Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
39

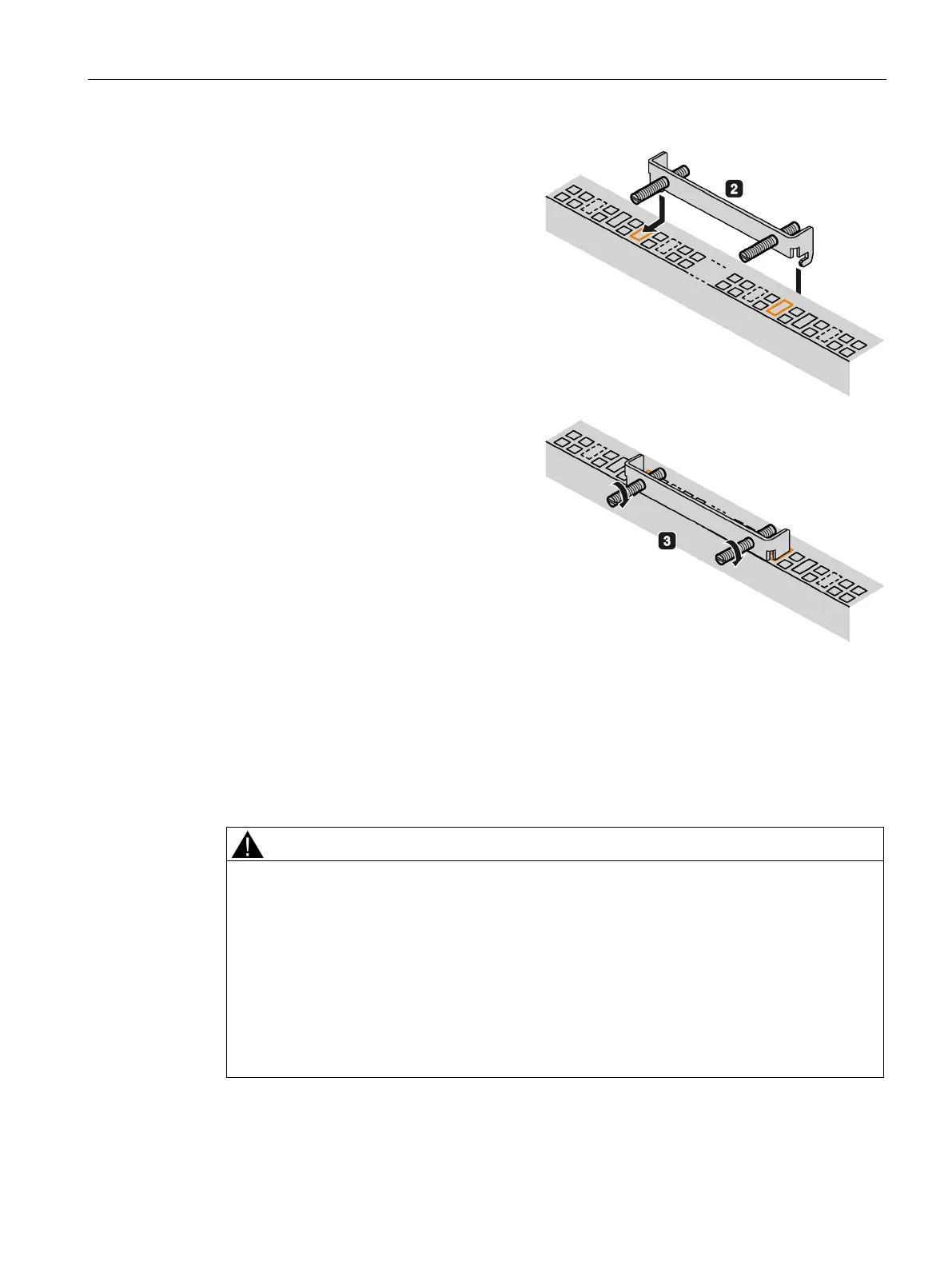

Insert the mounting clamp into the r
e-
cesses on the device. Make sure it is in
the correct position, see the section
"
Mounting clips or mounting brackets,
IP65-compliant installation
35)".
Secure the mounting bracket by tighte
n-
hreaded pins. The maximum
permissible torque is 0.5
Nm.
Repeat steps 2 and 3 until all mounting
brackets are attached.
Check the fit of the mounting seal.
IP65 degree of protection
The installer of the plant is responsible for proper installation of the device.
The degree of protection cannot be guaranteed if the device is not correctly installed.
Moisture or water can penetrate and cause electric shock or plant damage.
The IP65 degree of protection is ensured for the front of the device only if you observe the
following:
• Installation with mounting clamps
• The circumferential seal is properly attached to a correctly sized cutout.
• Follow the instructions when measuring the dimensions as shown in the section
"Preparing the mounting cutout (Page 31)".
