Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC477E
50 Operating Instructions, 12/2016, A5E37455003-AB

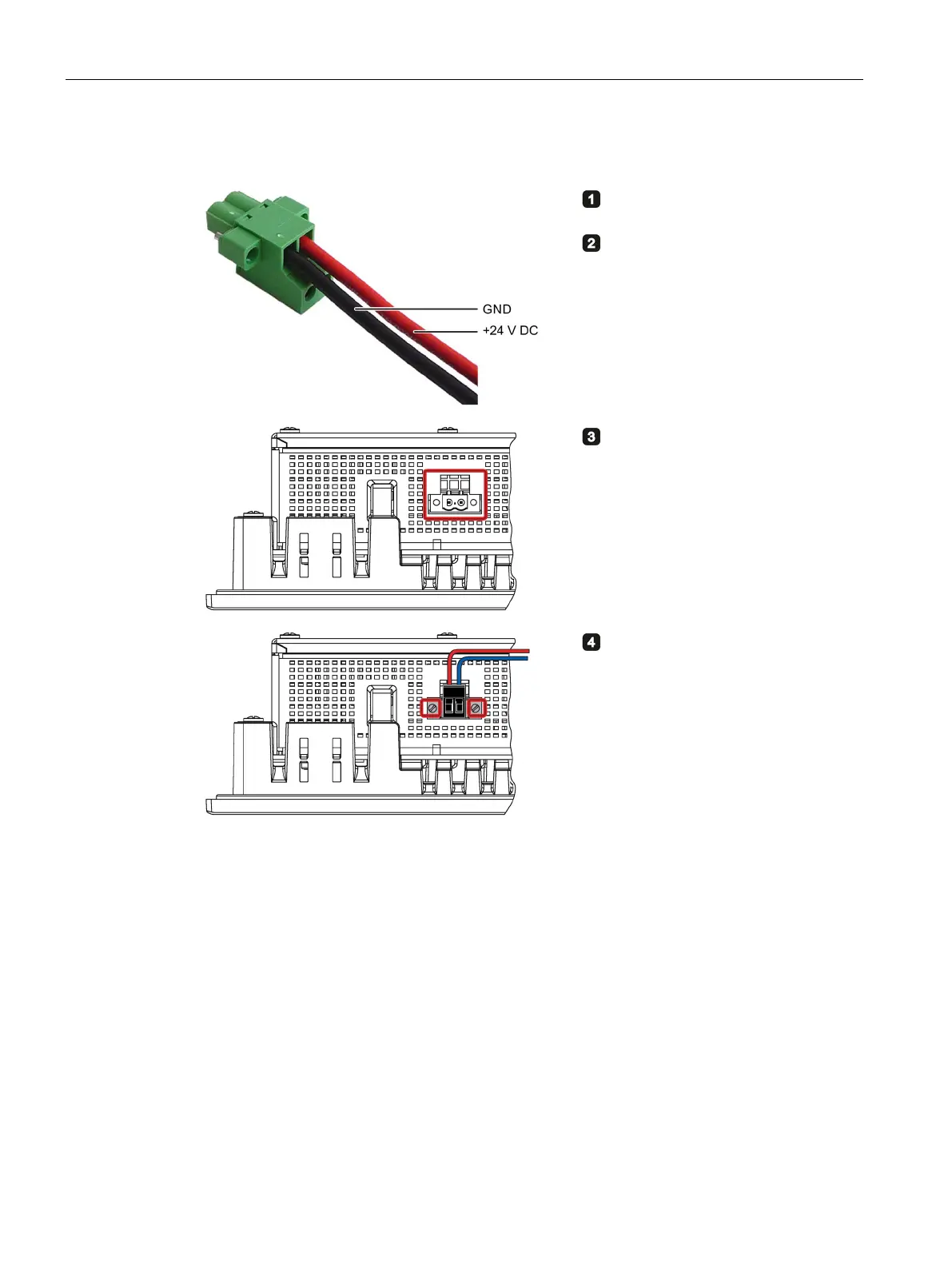

Procedure
Switch off the 24 V DC power
supply.
Connect the wires of the power
supply.
Connect the connection terminal
at the marked position.
Secure the connection terminal
with th
e marked screws.
