Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC477E
54 Operating Instructions, 12/2016, A5E37455003-AB

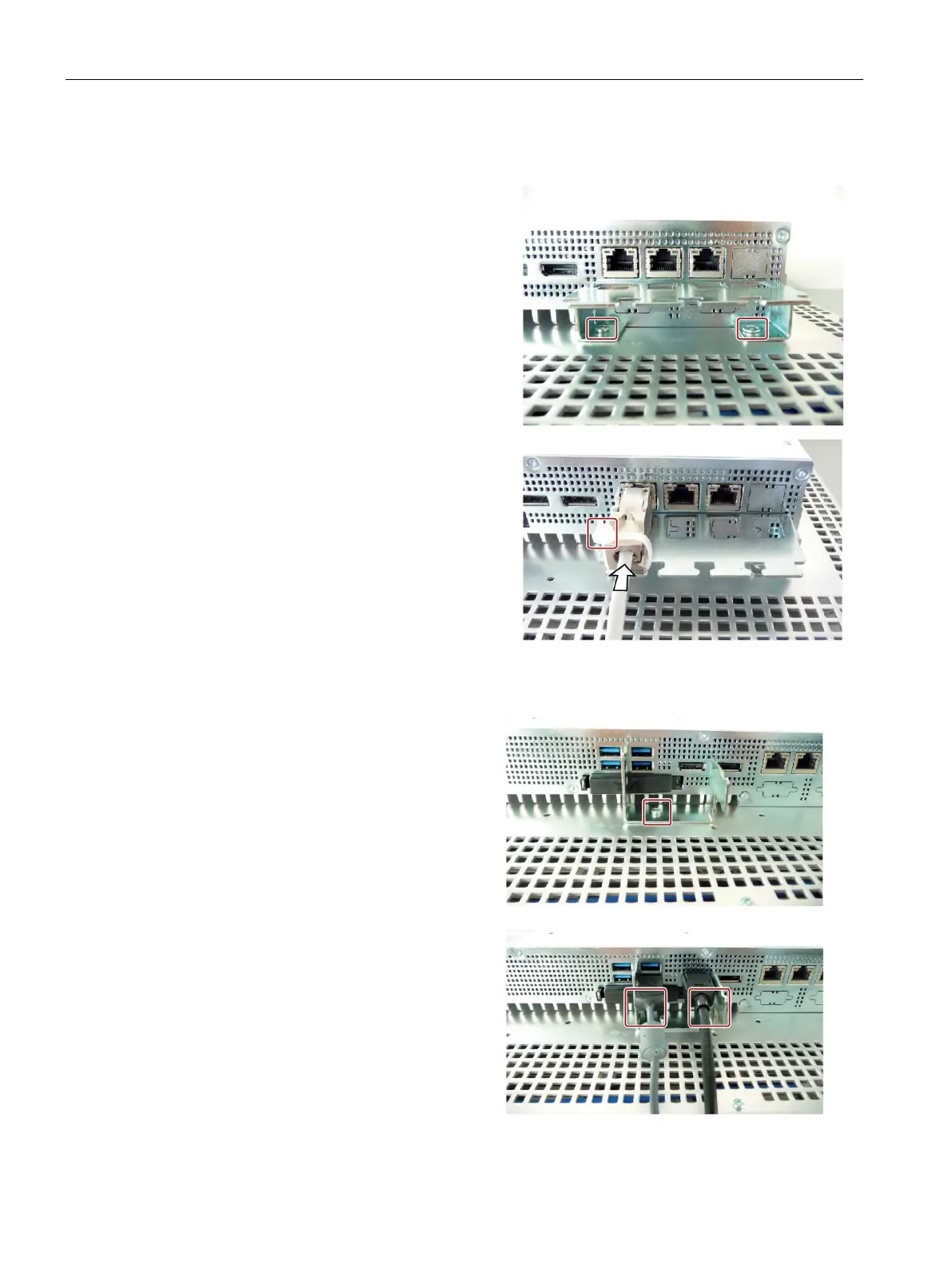

Installation of the strain relief for the Ethernet connections
1.
Screw on the strain relief with a screw
at the marked positions.
2.
Clip on the connector.
3.
Secure each connector with a cable
tie.
Installation of the strain relief for the DP and USB connections
1.
Screw on the strain relief with a screw
at the marked positions.
2.
Clip on the connector.
3.
Secure
each connector with a cable
tie.
