Expanding the device and assigning device parameters
6.1 Opening the device
SIMATIC IPC477E
80 Operating Instructions, 12/2016, A5E37455003-AB

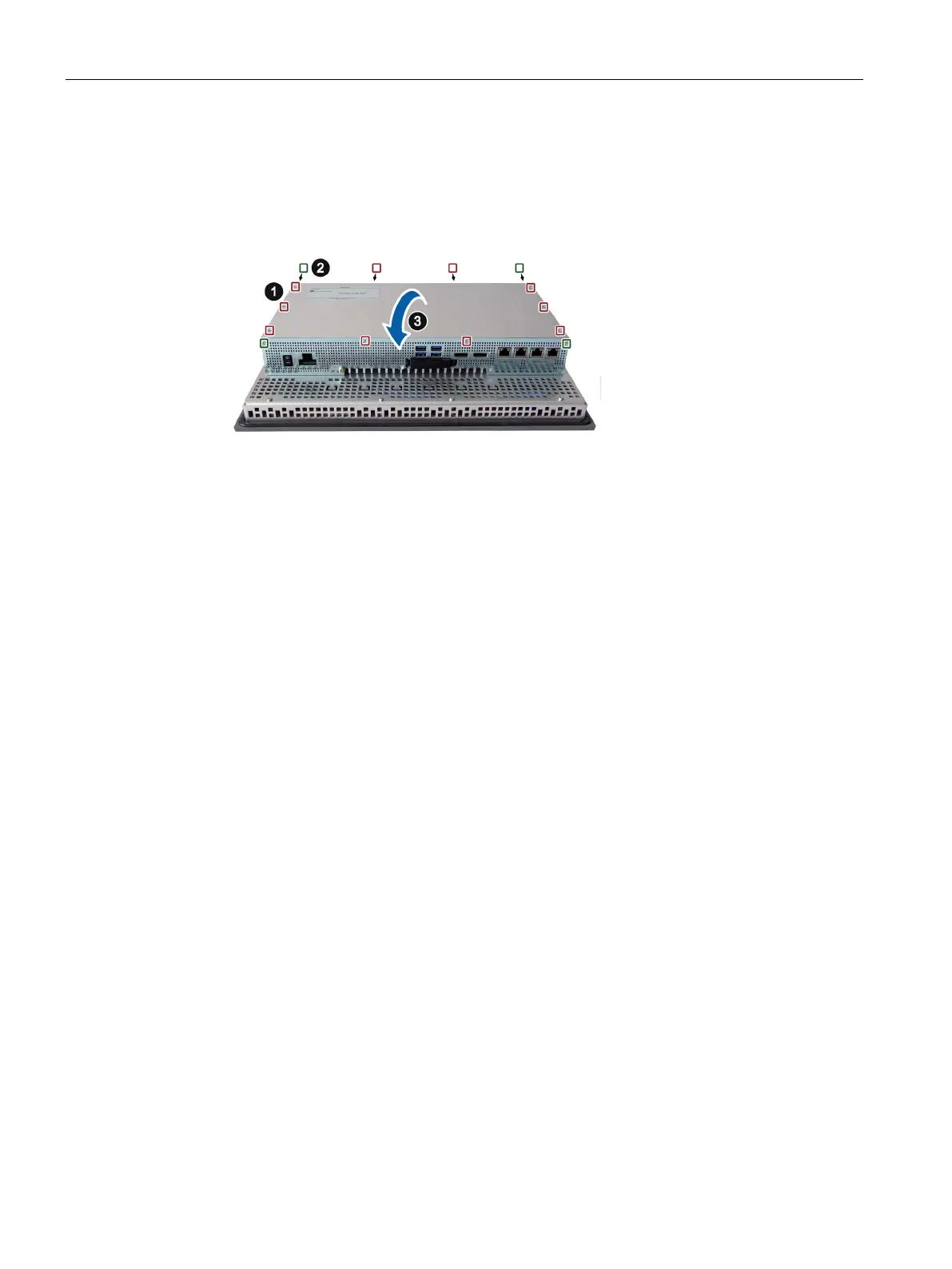

1. Remove the screws marked in red.
Device with 15", 19" or 22" display
2. Loosen the screws marked in green.
Position and number of the fastening screws are the same for the devices with 15", 19"
and 22" display.
3. Remove the rear panel of the device.
