Technical specifications
8.3 Dimension drawings
SIMATIC IPC547E
112 Operating Instructions, 02/2014, A5E32317120-AB

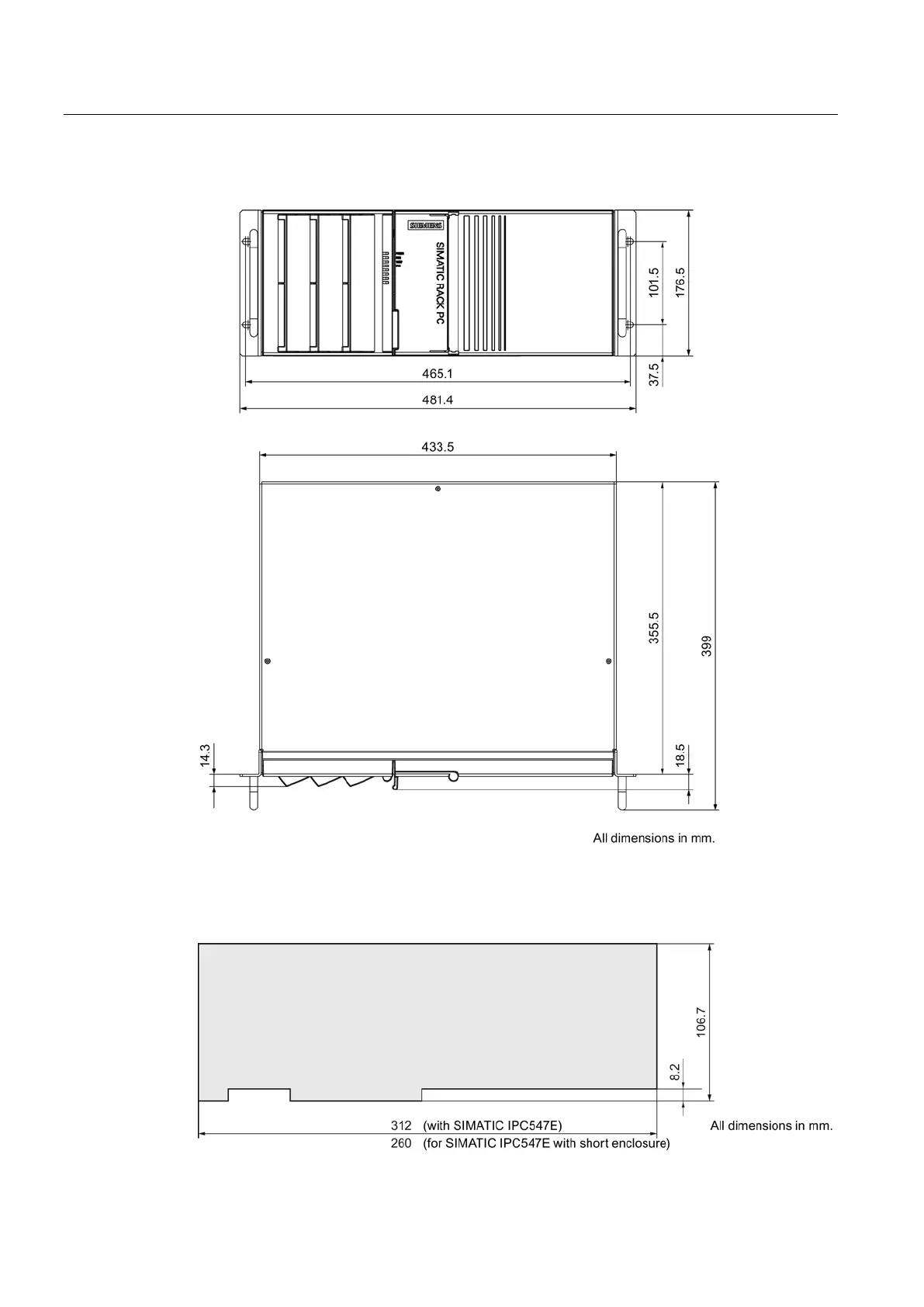

SIMATIC IPC547E with short enclosure: Front view and top view
8.3.2
Dimensional drawing for the installation of expansion cards
