Siemens SIMATIC IPC547E - 7.4 Removing and installing hardware

Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
77
7.4
Removing and installing hardware
7.4.1
Drives
7.4.1.1
Removing and installing the drive cage
Requirement
● The device is fully disconnected from the mains voltage, see chapter "Switching off the
device (Page 53)".
● The device is open, see the section "Open the device (Page 62)".
● The front door is open, see chapter "Opening the front door (Page 61)".
Procedure
Removal

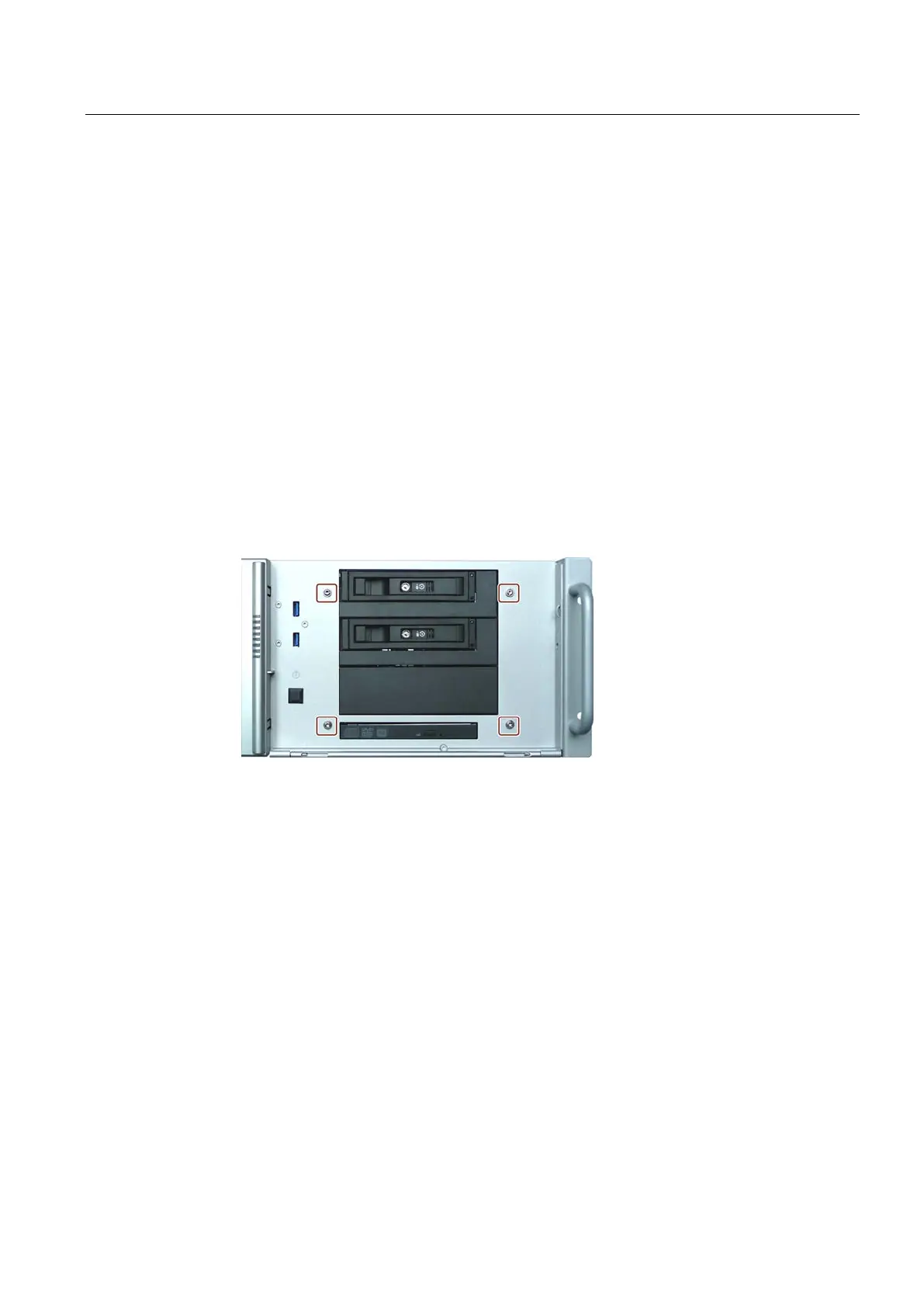

1. Remove the highlighted screws.
2. Remove the accessible power supply and data cables from the drives.
