Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
90 Operating Instructions, 02/2014, A5E32317120-AB
Removing the device fan
Requirement
● The device is fully disconnected from the mains voltage, see section "Switching off the
device (Page 53)".
● The front door is open, see section "Opening the front door (Page 61)".
● The fan cover has been removed, see section "Remove the fan cover (Page 62)".
● The device is open, see the section "Open the device (Page 62)".
● T20 screwdriver
● A fan
Use only a fan of the same type.

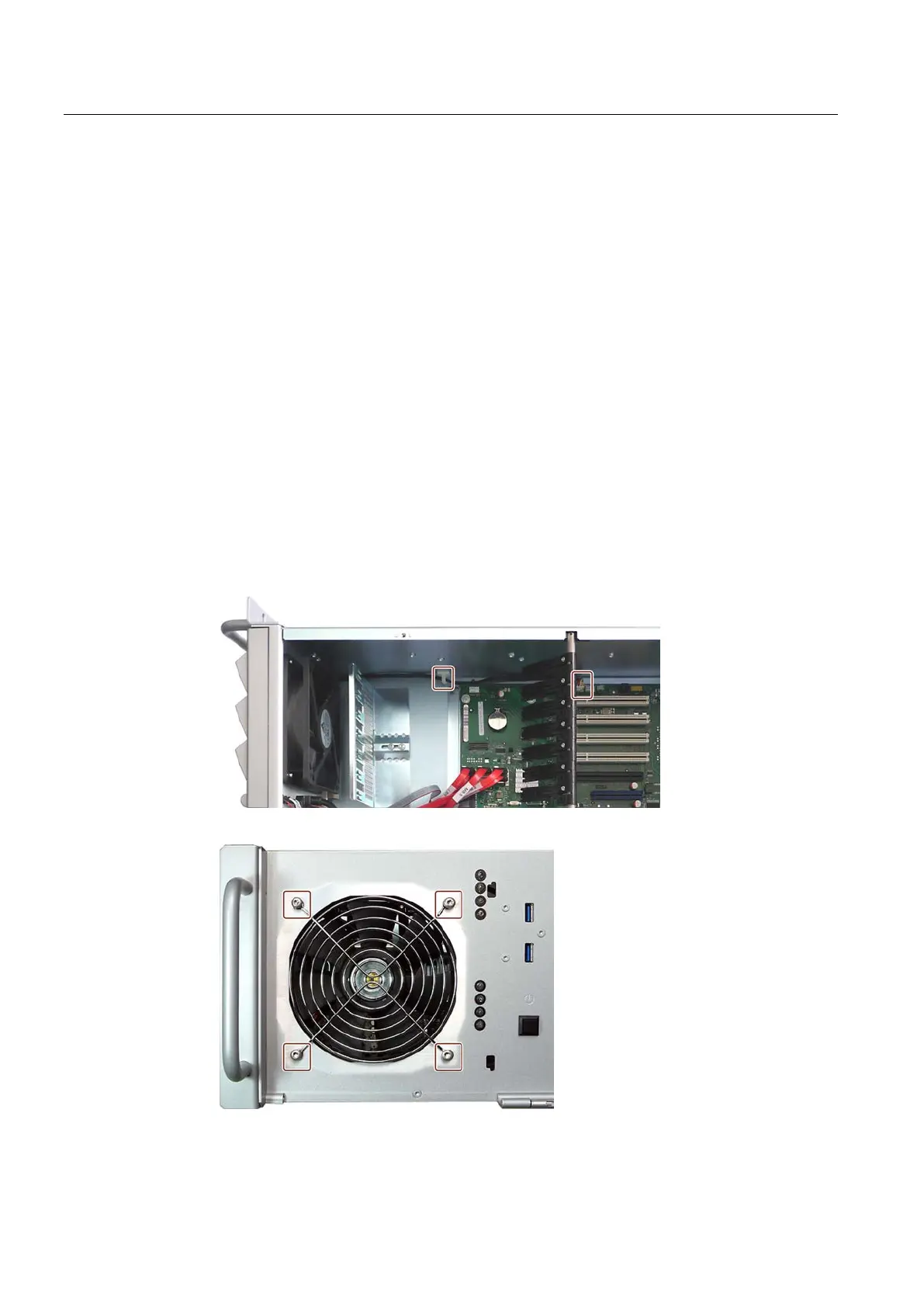

1. Pull the fan plug from the motherboard, see labels in the following figure.
2. Remove the screws highlighted in the following figure.
3. Take the fan out of the enclosure.
