Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
89

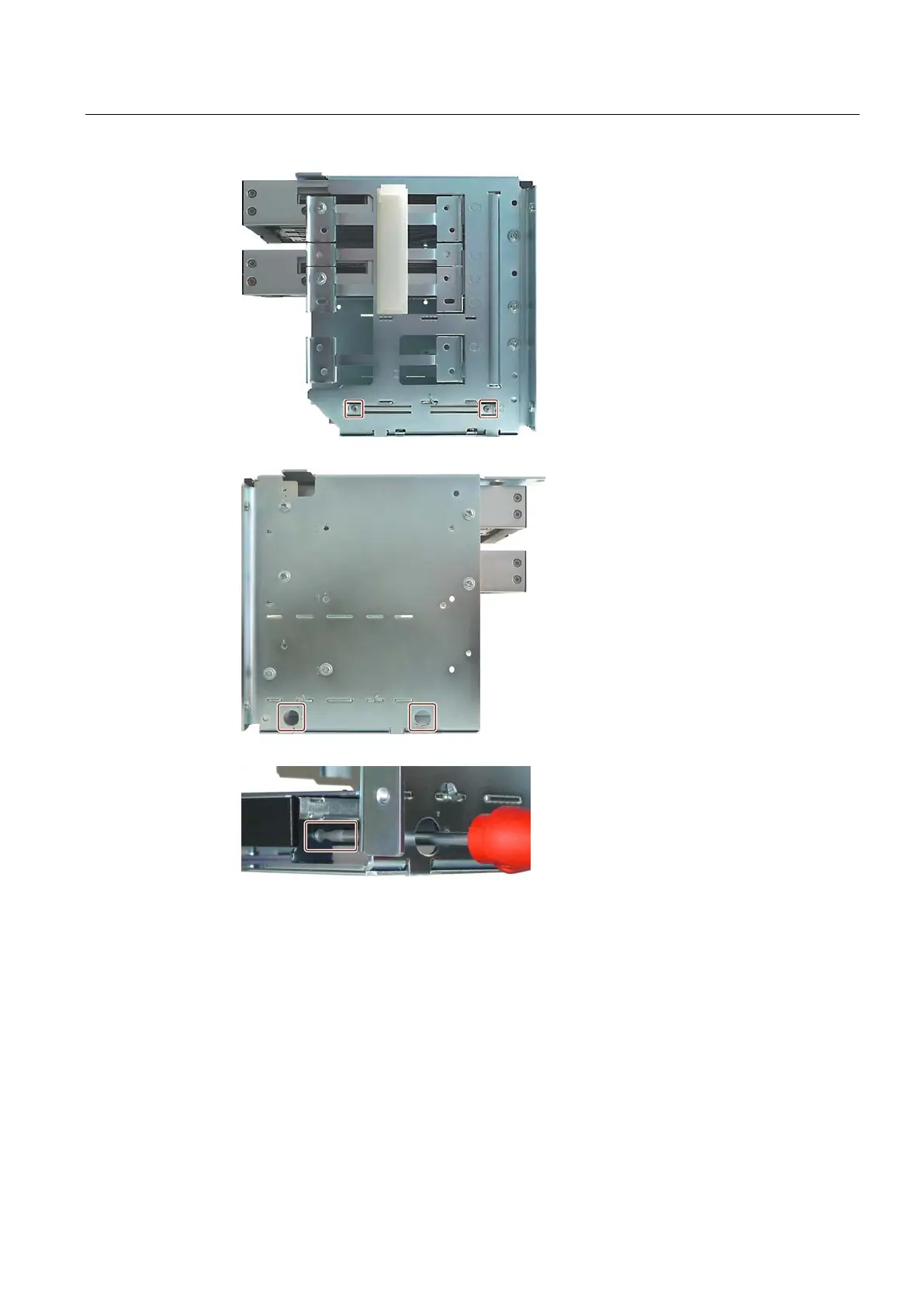

The figure below shows the positions of the screws on the right side of the drive cage.
The figure below shows the fixing screw on the drive cage.
2. Take the DVD drive out of drive cage from the front.
1. Carefully insert the new DVD drive into the drive cage from the front.
Take care not to touch the contacts of the DVD drive when you do this.
2. Fasten the DVD drive with the screws according to the diagram on the drive cage.
3. Install the drive cage back into the device, see section "Removing and installing the drive
cage (Page 77)".
