Overview
1.2 Device configuration
SIMATIC IPC547E
14 Operating Instructions, 02/2014, A5E32317120-AB
1.2
Device configuration

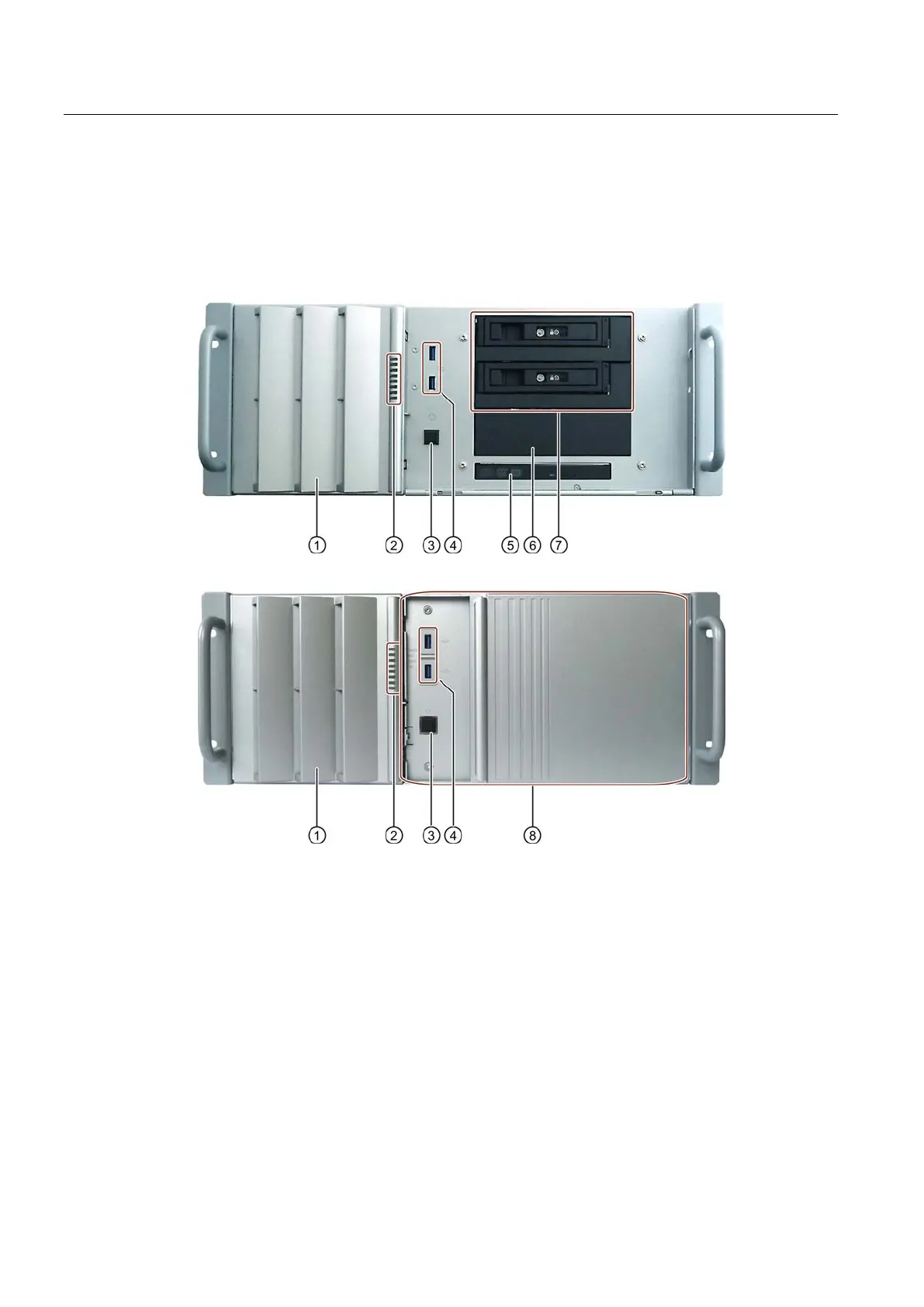

Device front with open front door
SIMATIC IPC547E
SIMATIC IPC547E with short enclosure
①
Fan cover
Fan cover with openings
for ventilation of the device
②
Status displays
See chapter "
Status displays (Page 20)."
③
On/off button
See chapter "
Operator controls (Page 18)."
④
2 × USB 3.0
Connections for USB devices, backward compatible with
USB 2.0/1.1
⑤
Optical drive
DVD burner drive
⑥
Mounting locations
For removable drive bays with drives (HDD or SSD) or for
5.25" drives
⑦
1 to 4 removable
drive
bays
Depending on configuration, 1
to 4 removable drive bays with
drives (HDD or SSD)
⑧
Front panel
Is removed for taking out and installing the internal hard disk
drives
