Overview
1.2 Device configuration
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
15

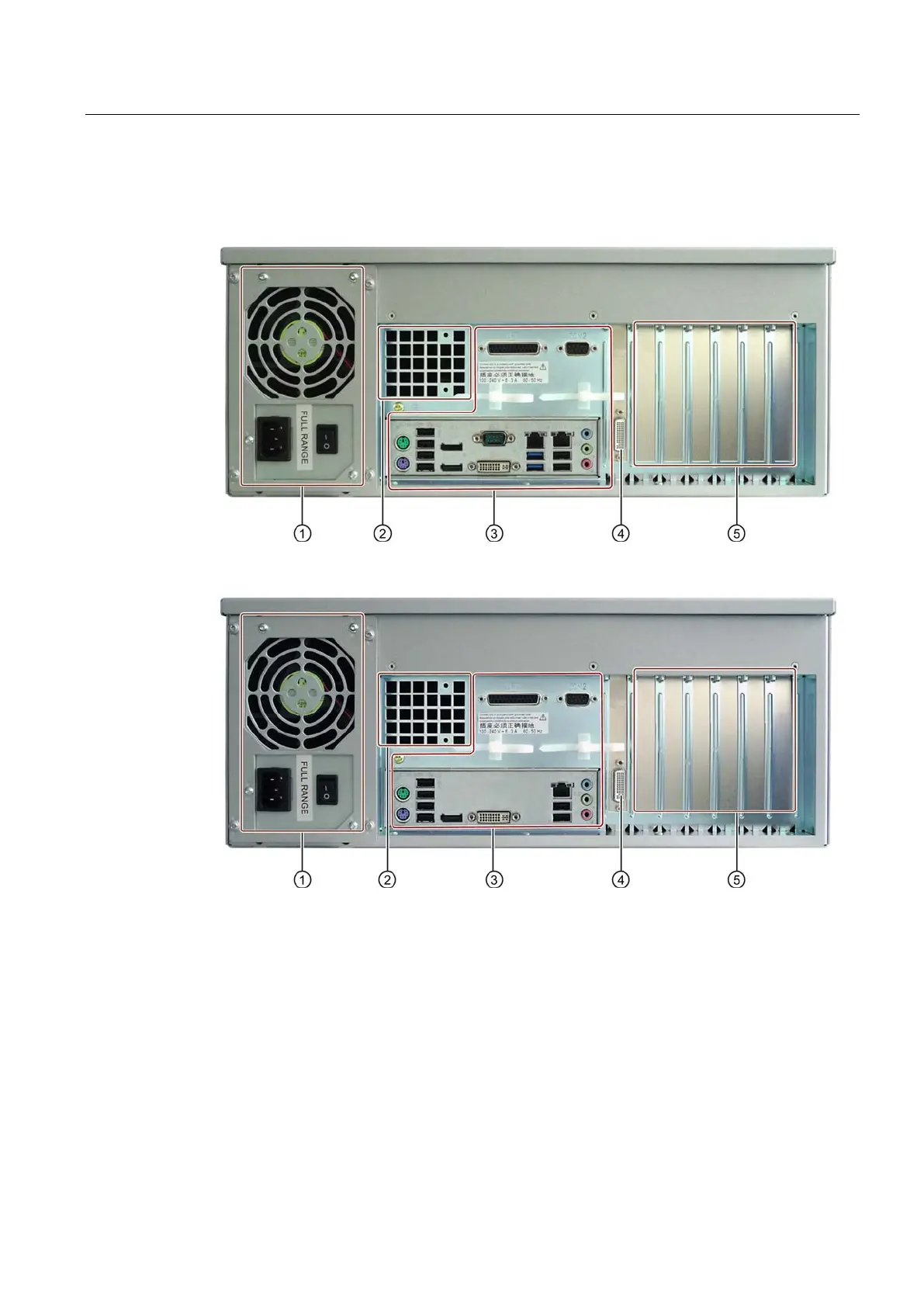

Rear of the device
SIMATIC IPC547E
SIMATIC IPC547E with short enclosure
①
Power supply
See section "
Interfaces and connections (Page 16)", power
supply connection
②
Air outlet
③
Interfaces
See chapter "
Interfaces and connections (Page 16)."
④
Dual
-head graphics
card
DMS59 connection of optional dual
-head graphics card
⑤
Expansion card slots
•
4 × PCI
•
2 × PCIe x16
•
1 × PCIe x8
