Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
78 Operating Instructions, 02/2014, A5E32317120-AB

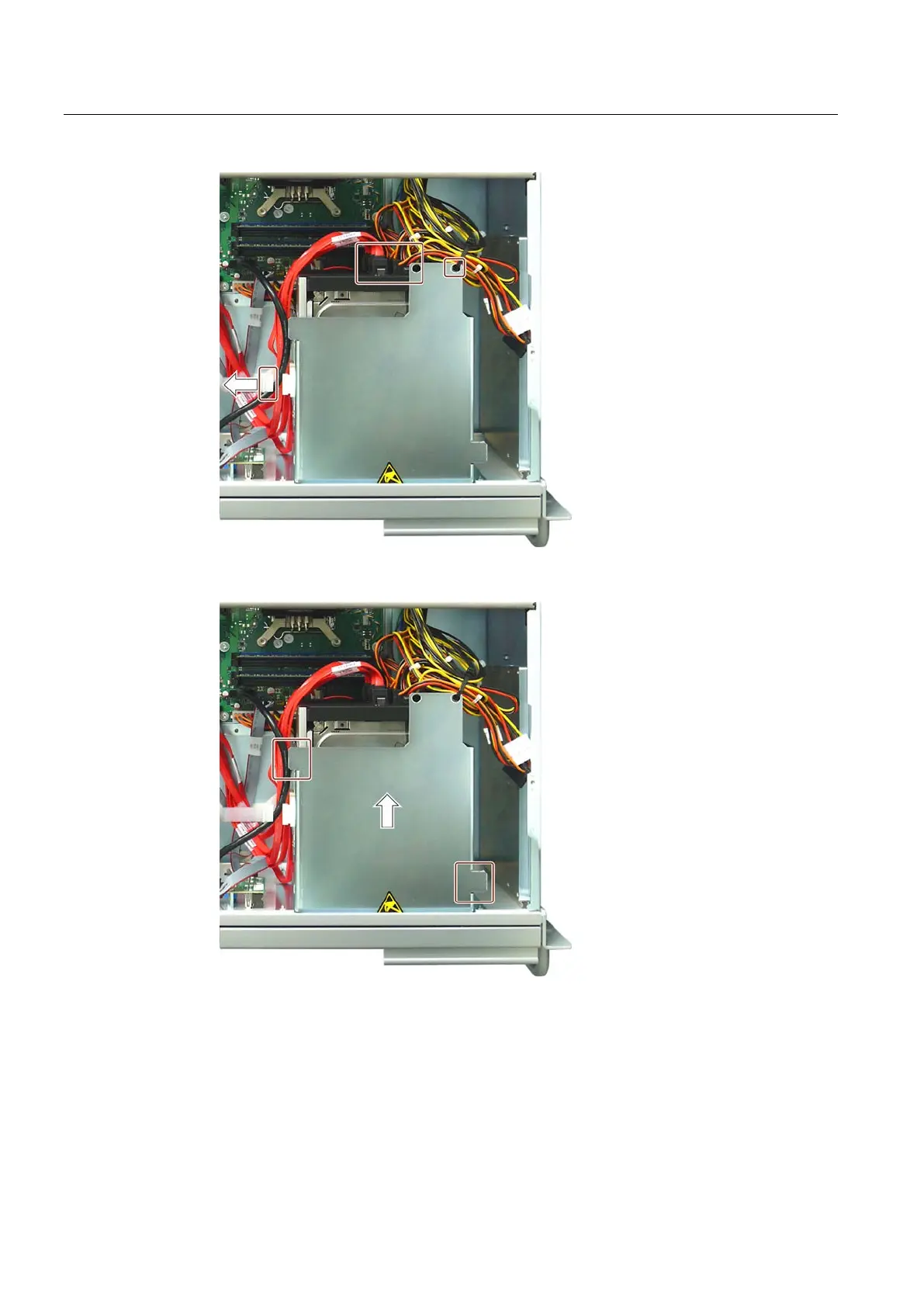

3. Hold the drive cage at the marked areas, push it in the direction of the arrow, then lift the
drive cage completely out of the device.
Follow the steps described under removal in the reverse order.
