Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
37
Position of the mounting holes for angle brackets or telescopic rails
The dimensions for the mounting holes are listed in the chapter "Dimension drawing for the
drilling holes of telescopic rails (Page 113)".

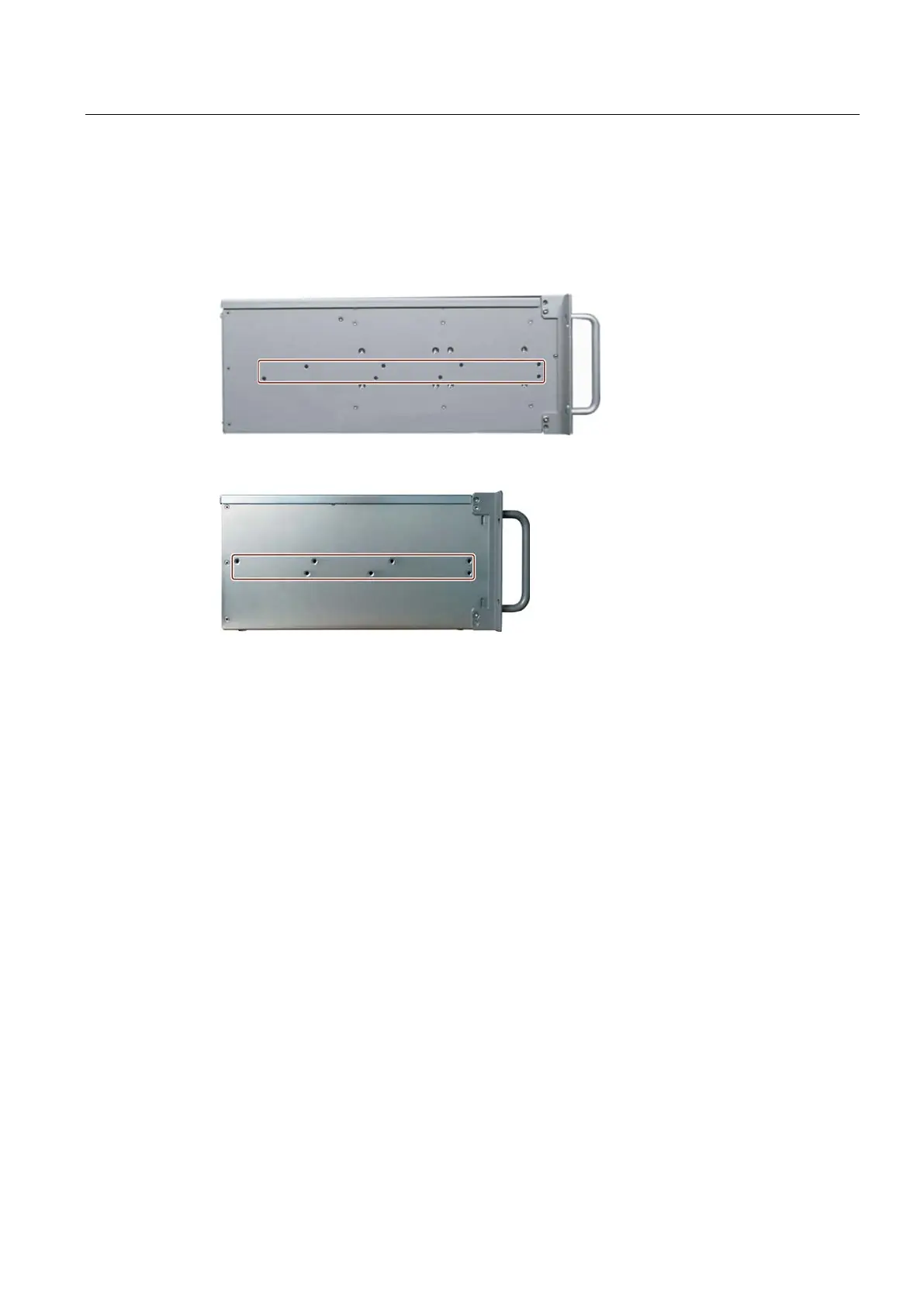

Mounting holes for SIMATIC IPC547E
Mounting holes for SIMATIC IPC547E with short enclosure
