7.4 Removing and installing hardware
SIMATIC IPC547E
80 Operating Instructions, 02/2014, A5E32317120-AB

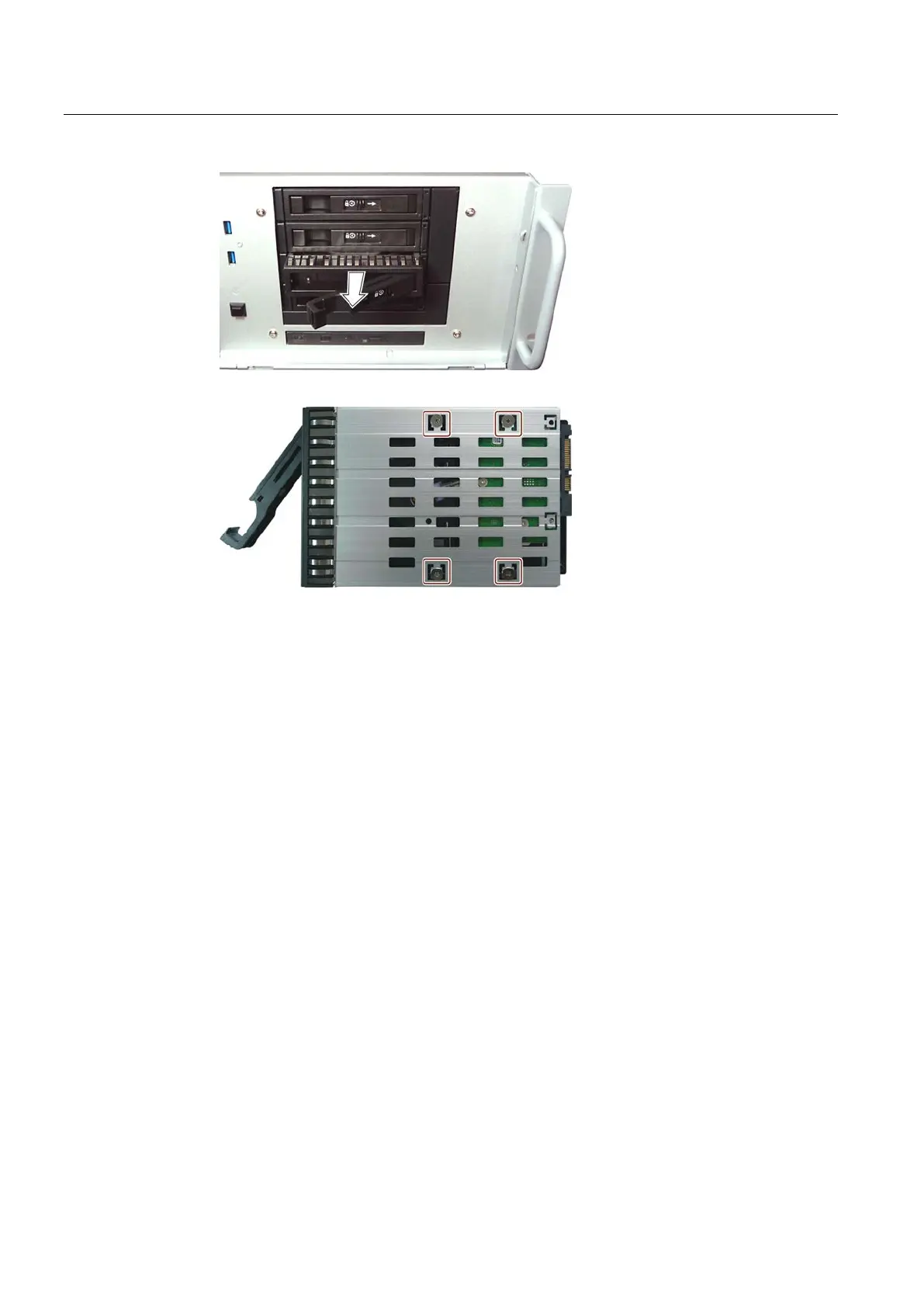

5. Loosen the highlighted screws on the bottom of the tray and remove the drive.
1. Carefully insert the new drive into the tray.
Take care not to touch the contacts of the drive when you do this.
2. Fasten the new drive with the screws to the base of the tray.
Only use the original screws.
