Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547E
82 Operating Instructions, 02/2014, A5E32317120-AB
SIMATIC IPC547E with short enclosure
The internal hard disks are located on the side wall of the
device.
The internal hard disks are located on the front wall of the
device.
Disconnect the power supply and data cables from the hard disk that you are removing.
4. Loosen the highlighted fixing screws and remove the internal hard disk from the device.

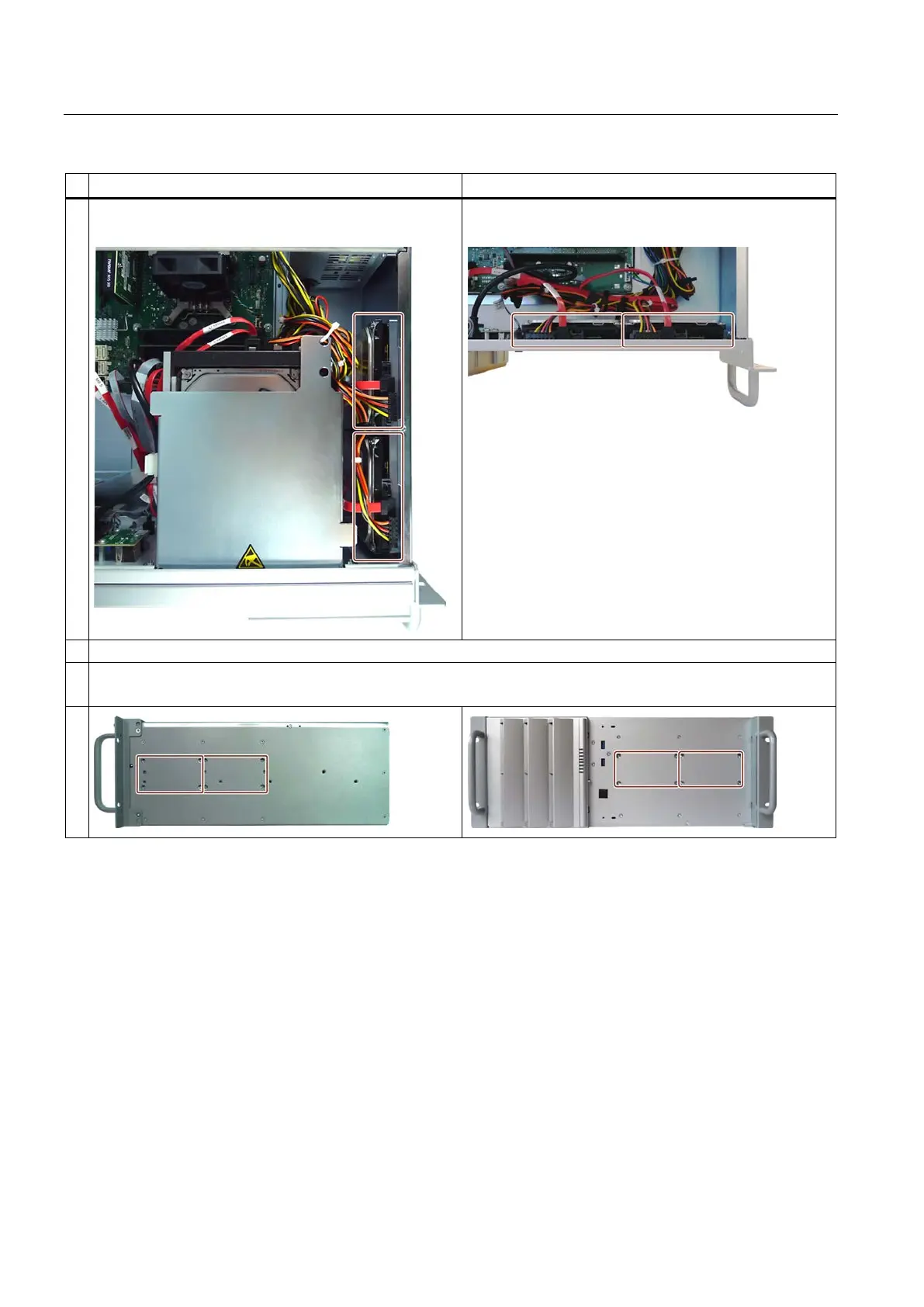

The figures below show the two possible slots for internal hard disks and the positions of the four screws for each slot.
1. Hold the new hard disk to the drive bay plate.
2. Fasten the hard disk with the four fixing screws from the outside to the drive bay plate.
3. Connect the power supply and data cables to the hard disk.
4. Close the device.
