7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
95
1. Remove the expansion cards from the slots, see chapter "Installing expansion cards
(Page 64)".
2. Note the assignment of all cables to the motherboard.
3. Disconnect all cables from the motherboard.

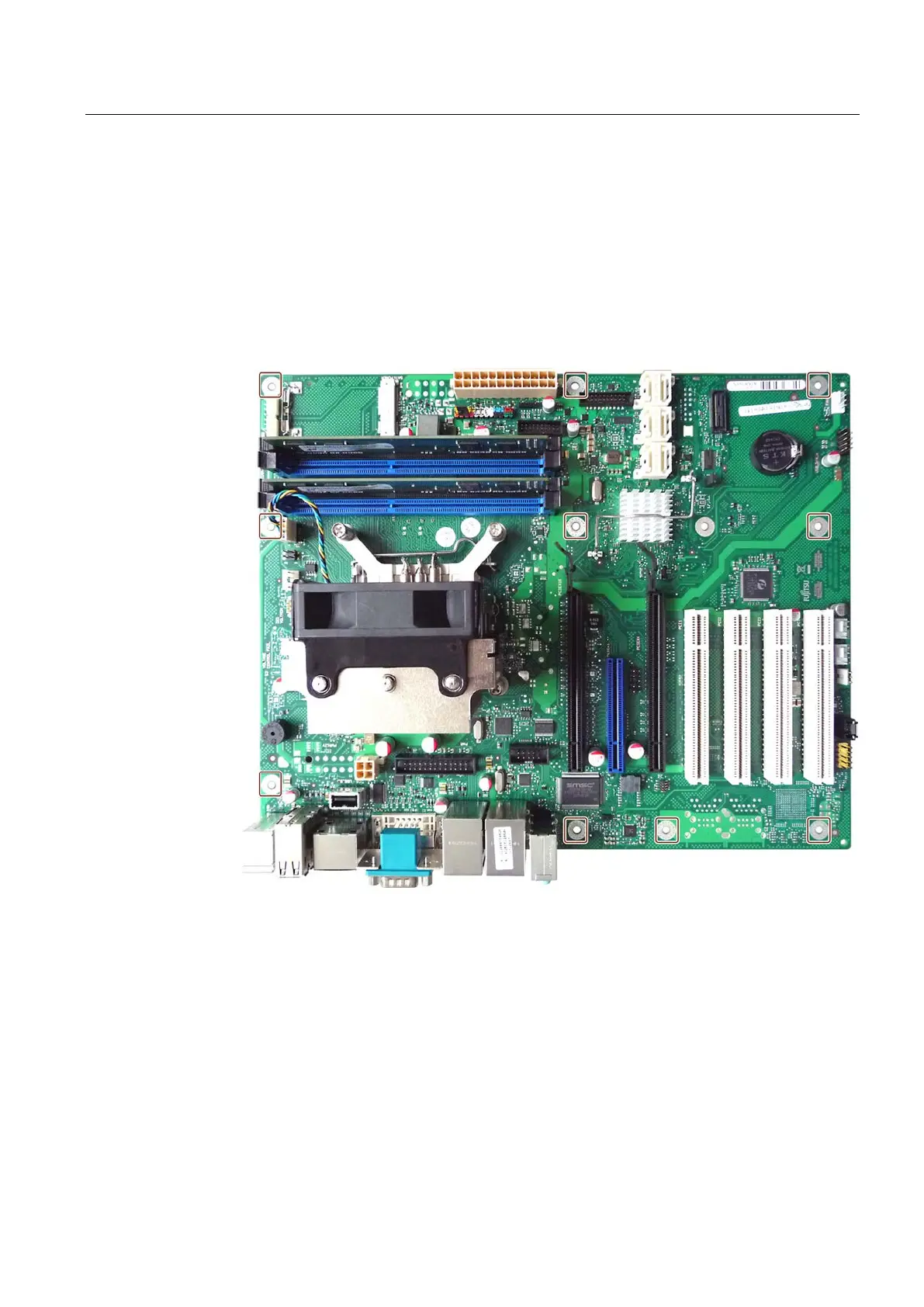

4. Remove the ten screws highlighted in the figure.
1. For installation, follow the steps for removal in reverse order.
2. Update the BIOS to match the version of the motherboard. Please note during the update
if you operate a device with or without a RAID system.
