7.4 Removing and installing hardware
SIMATIC IPC547E
Operating Instructions, 02/2014, A5E32317120-AB
97
3. Unlock the socket and lift the socket cover.
4. Remove the processor.

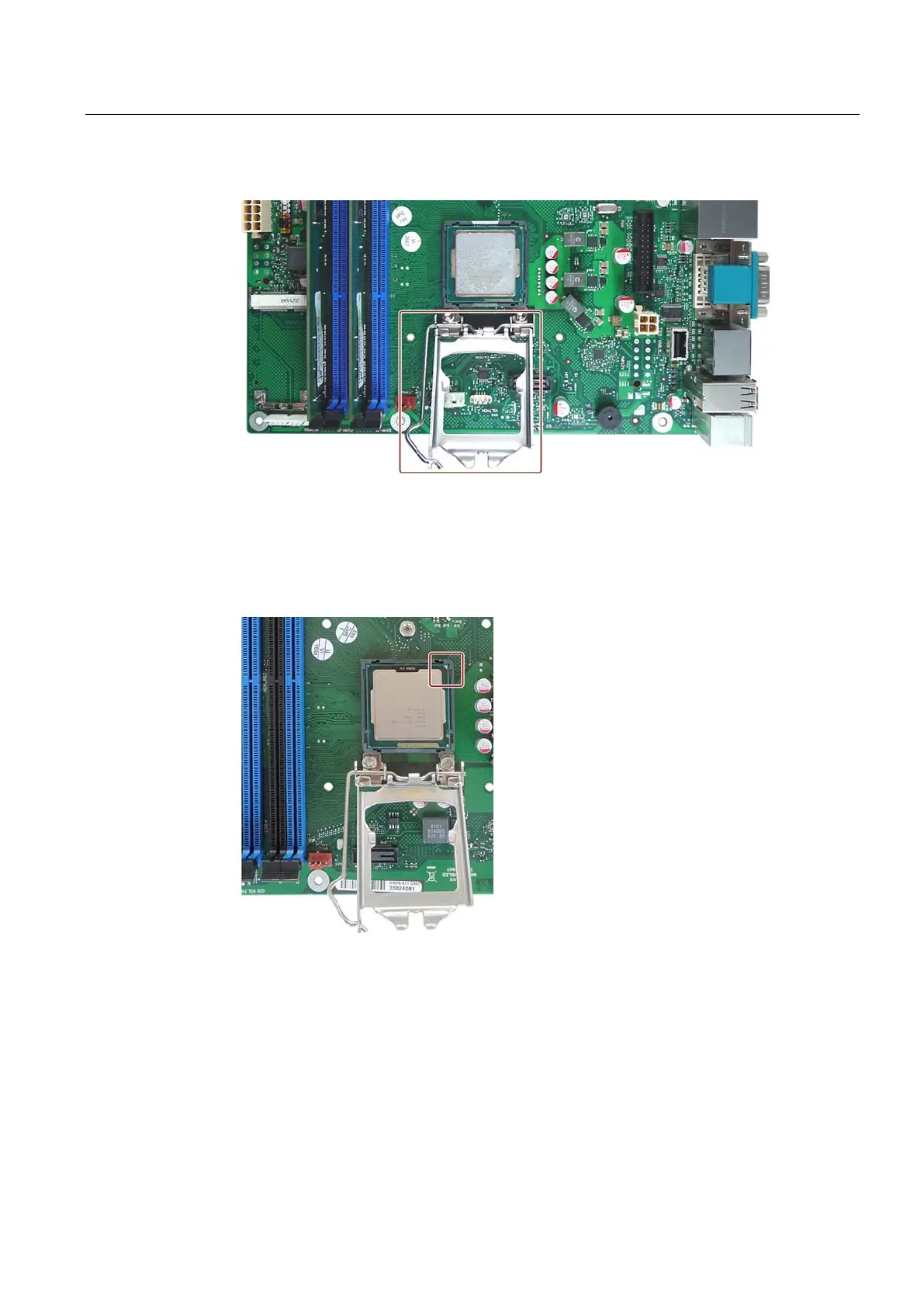

1. Install the new processor on the socket, as shown in the figure.
During positioning, make sure to take the highlighted arrow on the processor into
consideration.
The rest of the procedure is described in the manual for the motherboard on the supplied
"Documentation and Drivers" DVD.
2. If you use a processor of a different type, perform a BIOS update.
The microcode matching the processor is loaded in the process.
