Product properties
3.4 SCALANCE X104-2
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
13
3.4 SCALANCE X104-2
3.4.1 SCALANCE X104-2 product characteristics
Possible connections
The SCALANCE X104-2 has four RJ-45 jacks and two BFOC ports for the connection of end
devices or other network segments.
Note
The BFOC
socket (Bayonet Fiber Optic Connector) corresponds to the ST socket.

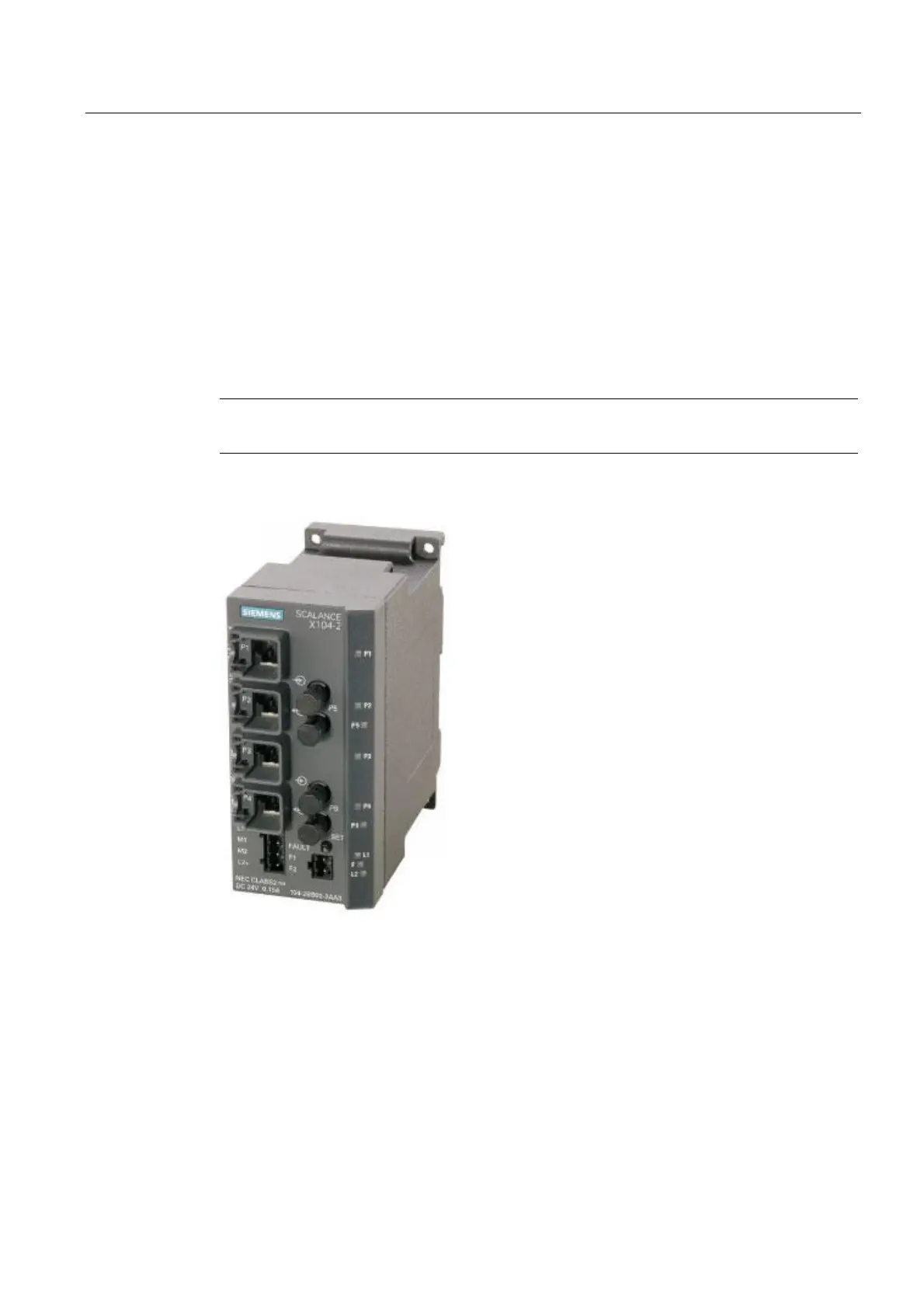

Figure 3-1 SCALANCE X104-2
