3.9 SCALANCE X116
3.9.1 SCALANCE X116 product characteristics
Possible connections
The SCALANCE X116 has 16 RJ-45 jacks for the connection of end devices or other
network segments.

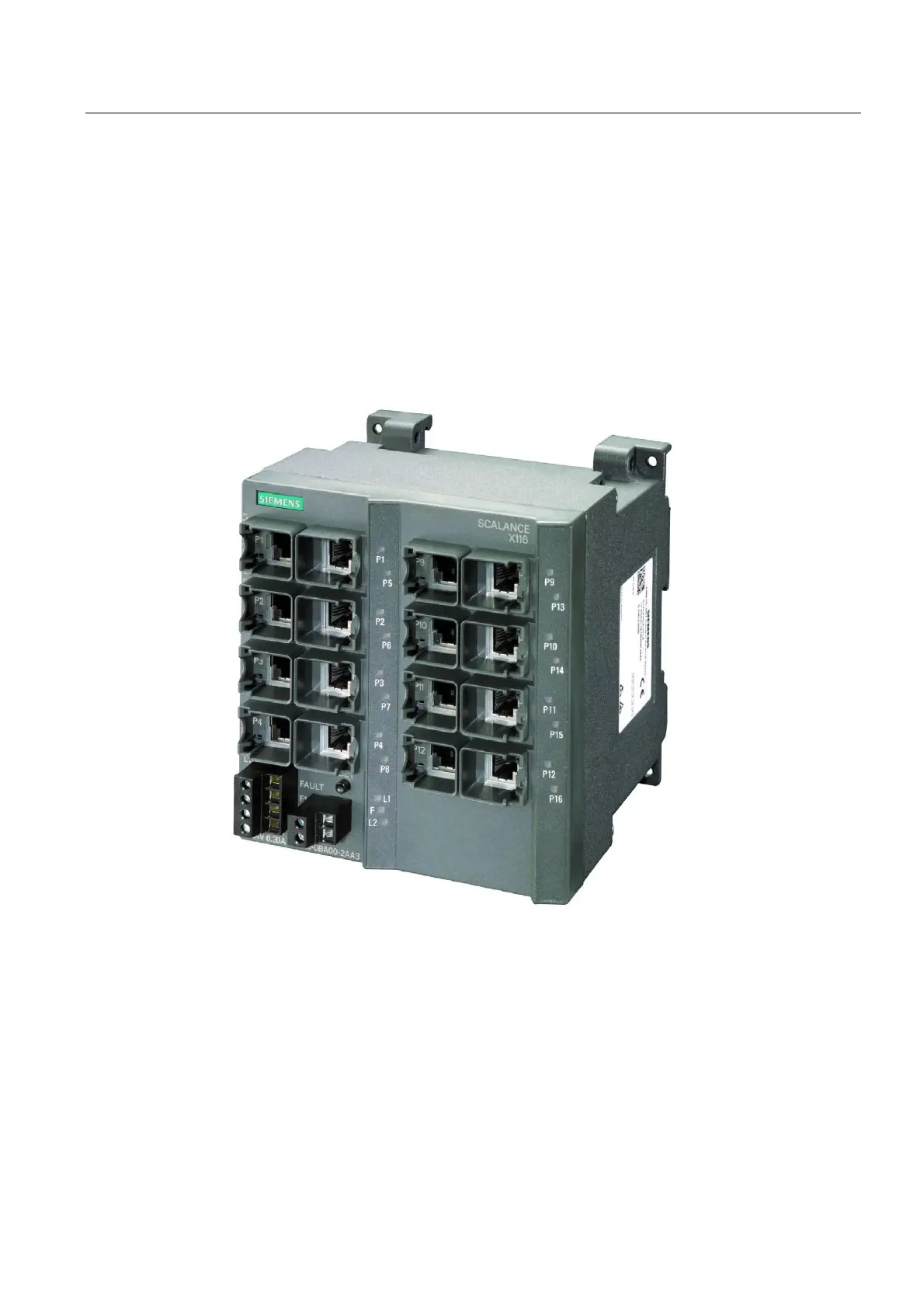

Figure 3-11 SCALANCE X116
