SCALANCE X-100
Operating Instructions, 04, A2B00060666D
63
8
Dimension drawings
8.1 Dimension Drawing

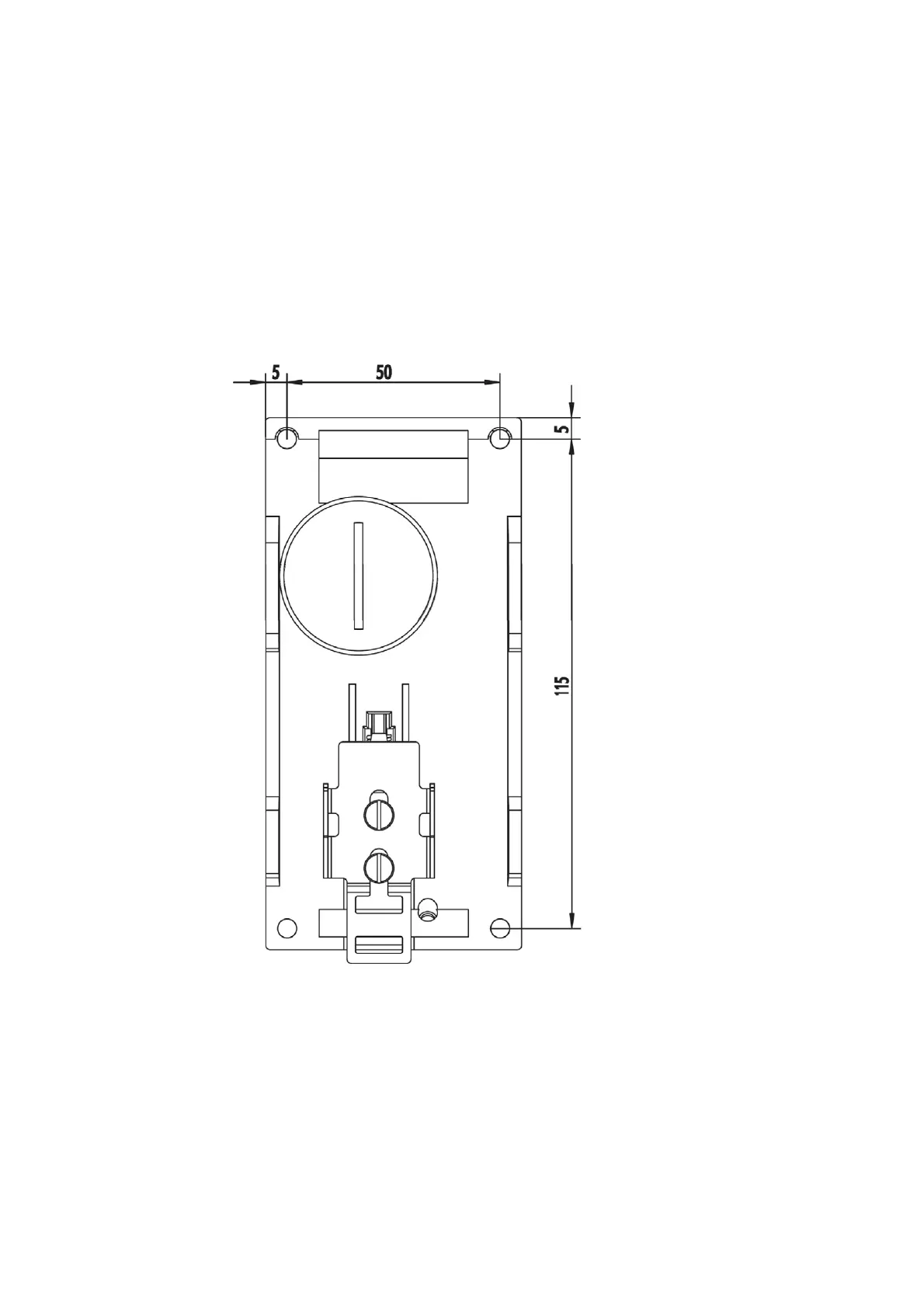

Figure 8-1 Dimension drawing of the SCALANCE X104-2, X106-1, X108, X108PoE
