3.10 SCALANCE X124
SCALANCE X-100
34 Operating Instructions, 04, A2B00060666D
3.10 SCALANCE X124
3.10.1 SCALANCE X124 product characteristics
Possible connections
The SCALANCE X124 has 24 RJ-45 jacks for the connection of end devices or other
network segments.

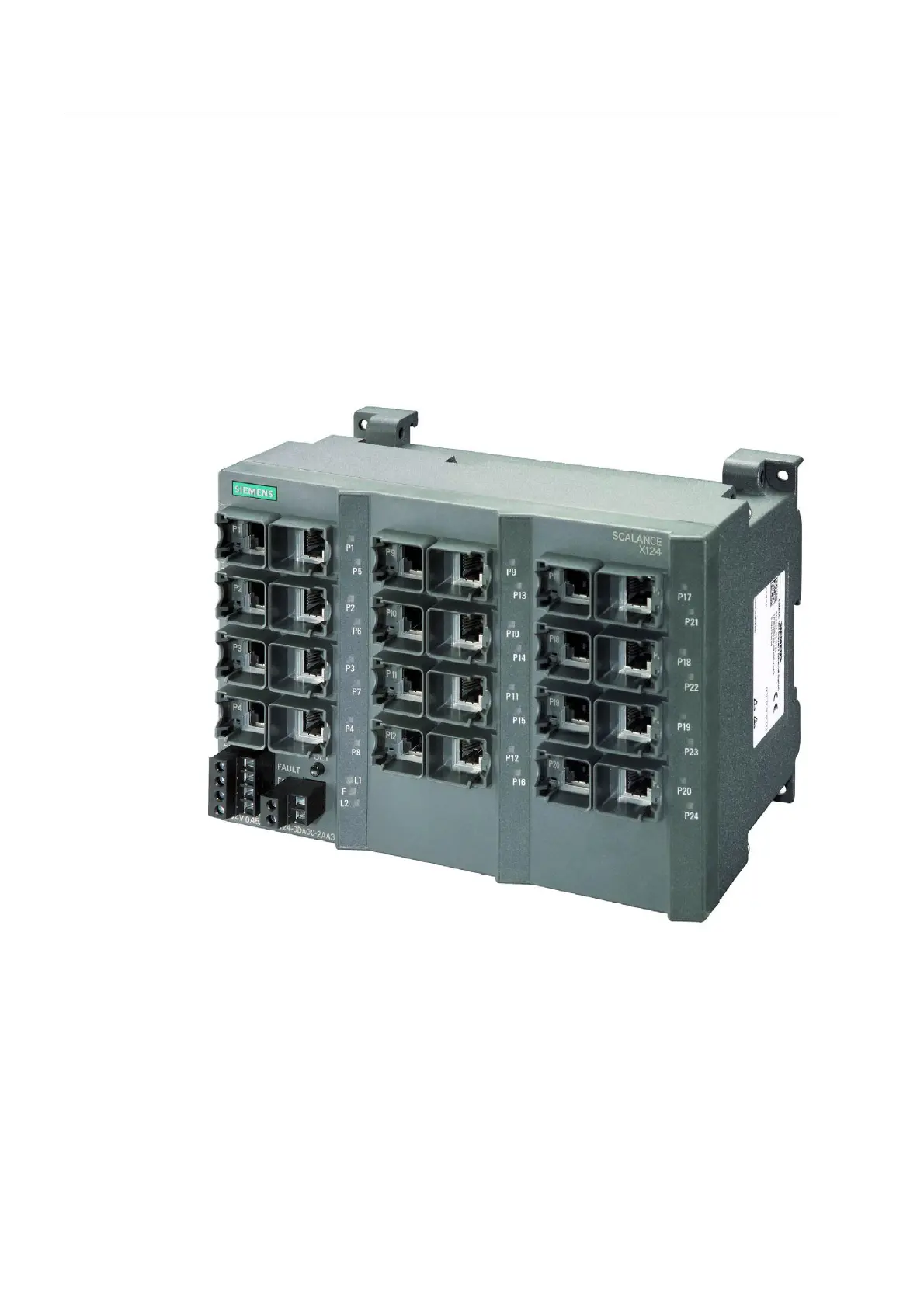

Figure 3-13 SCALANCE X124
