Product properties
3.5 SCALANCE X106-1
SCALANCE X-100
18 Operating Instructions, 04, A2B00060666D
3.5.2 SCALANCE X106-1 TP ports
Connector pinout
On the SCALANCE X106-1, the TP ports are implemented as RJ-45 jacks with MDI-X
assignment (Medium Dependent Interface–Autocrossover) of a network component.

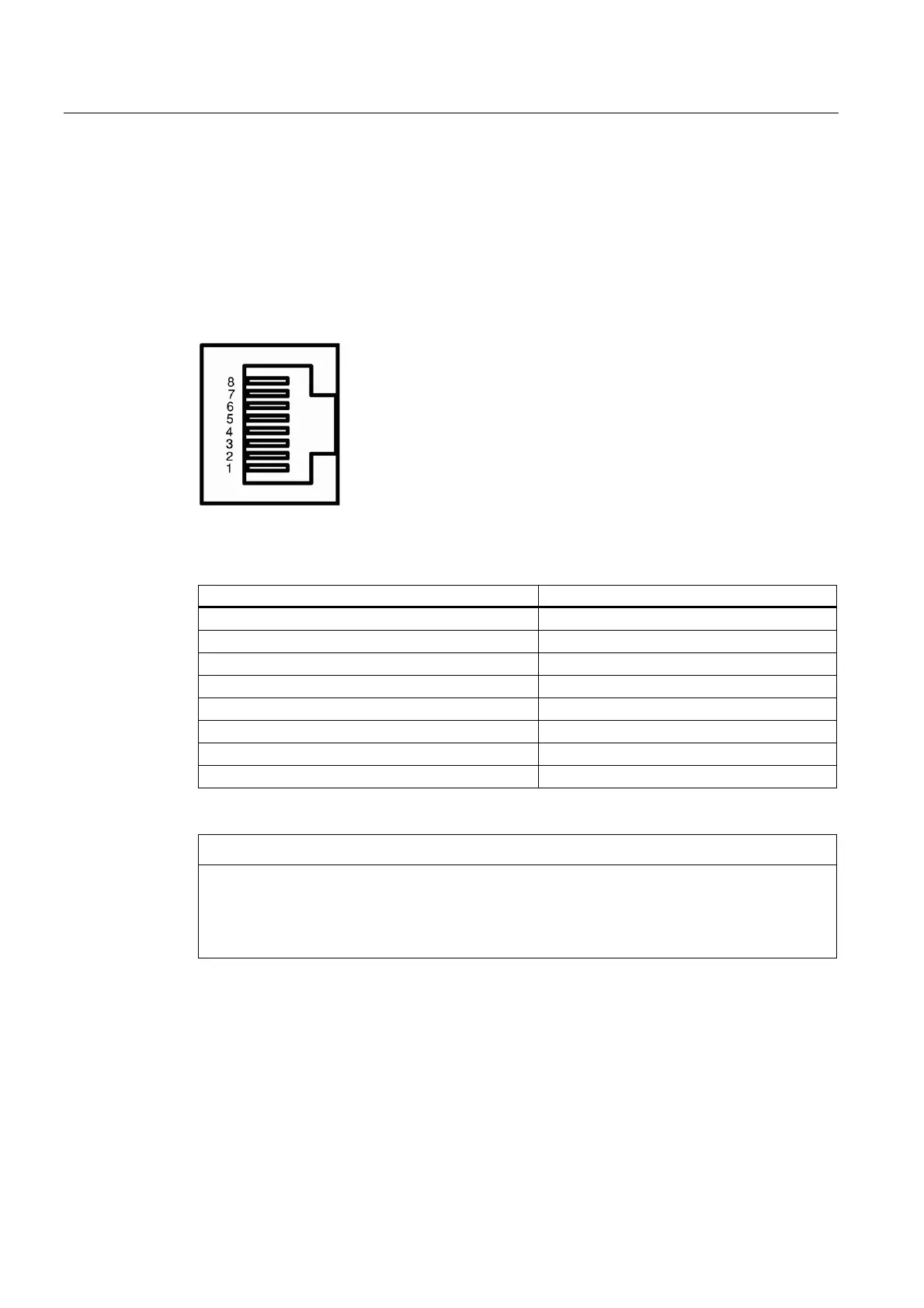

Figure 3-4 RJ-45 jack
Table 3- 4 Pin assignment of the RJ-45 jack
Pin number Assignment
Pin 8 n. c.
Pin 7 n. c.
Pin 6 TD-
Pin 5 n. c.
Pin 4 n. c.
Pin 3 TD+
Pin 2 RD-
Pin 1 RD+
NOTICE
TP cords or TP-XP cords with a maximum length of 10 m can be connected to the RJ-45
TP port.
With the IE FC cables and IE FC RJ-45 plug 180, an overall cable length of a maximum of
100 m is permitted between two devices depending on the cable type.
