Product properties
3.8 SCALANCE X112-2
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
27
3.8 SCALANCE X112-2
3.8.1 SCALANCE X112-2 product characteristics
Possible connections
The SCALANCE X112-2 has twelve RJ-45 jacks and two BFOC ports for the connection of
end devices or other network segments.
Note
The BFOC
socket (Bayonet Fiber Optic Connector) corresponds to the ST socket.

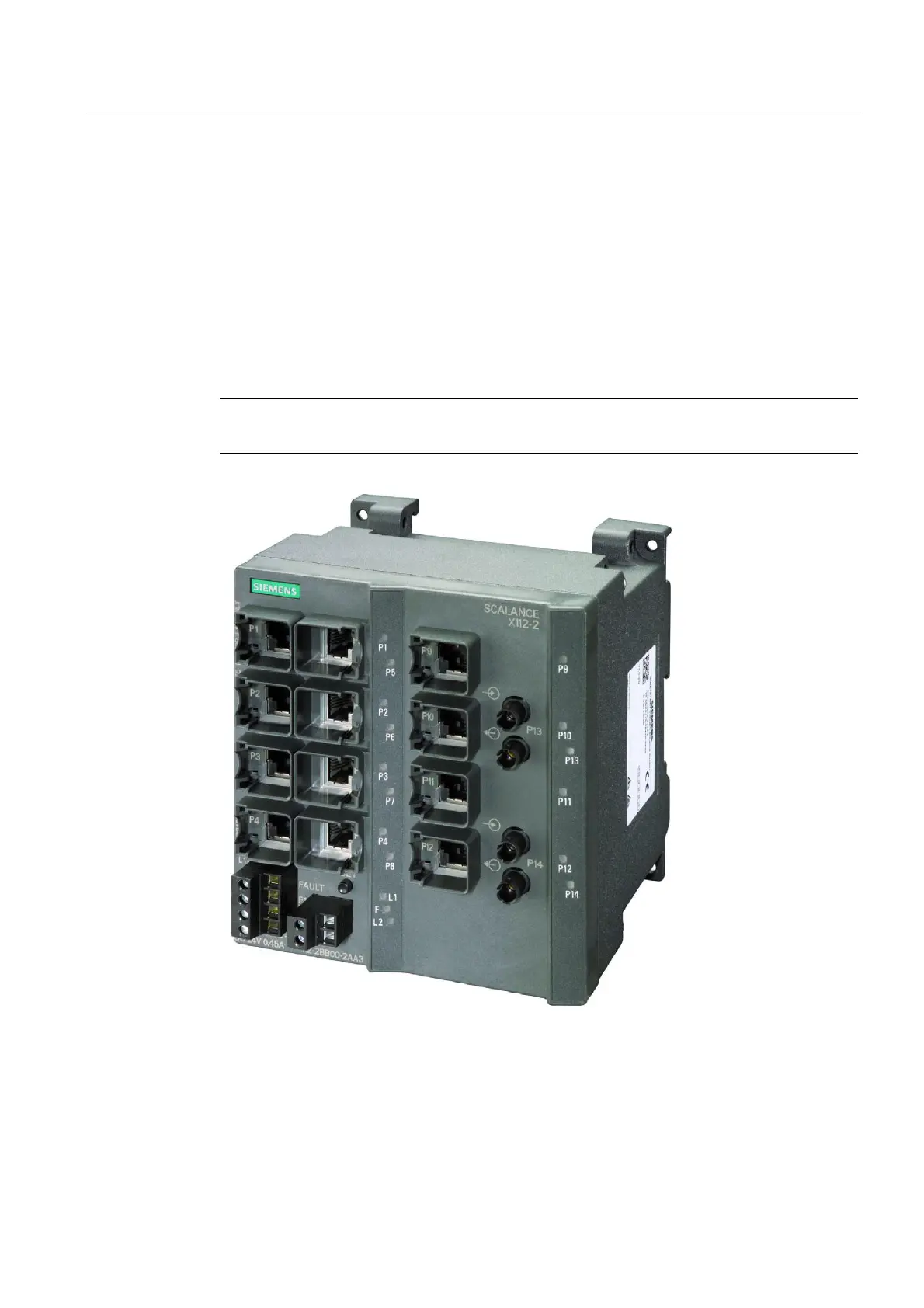

Figure 3-9 SCALANCE X112-2
