Product properties
3.6 SCALANCE X108
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
21
3.6 SCALANCE X108
3.6.1 SCALANCE X108 product characteristics
Possible connections
The SCALANCE X108 has eight RJ-45 jacks for the connection of end devices or other
network segments.

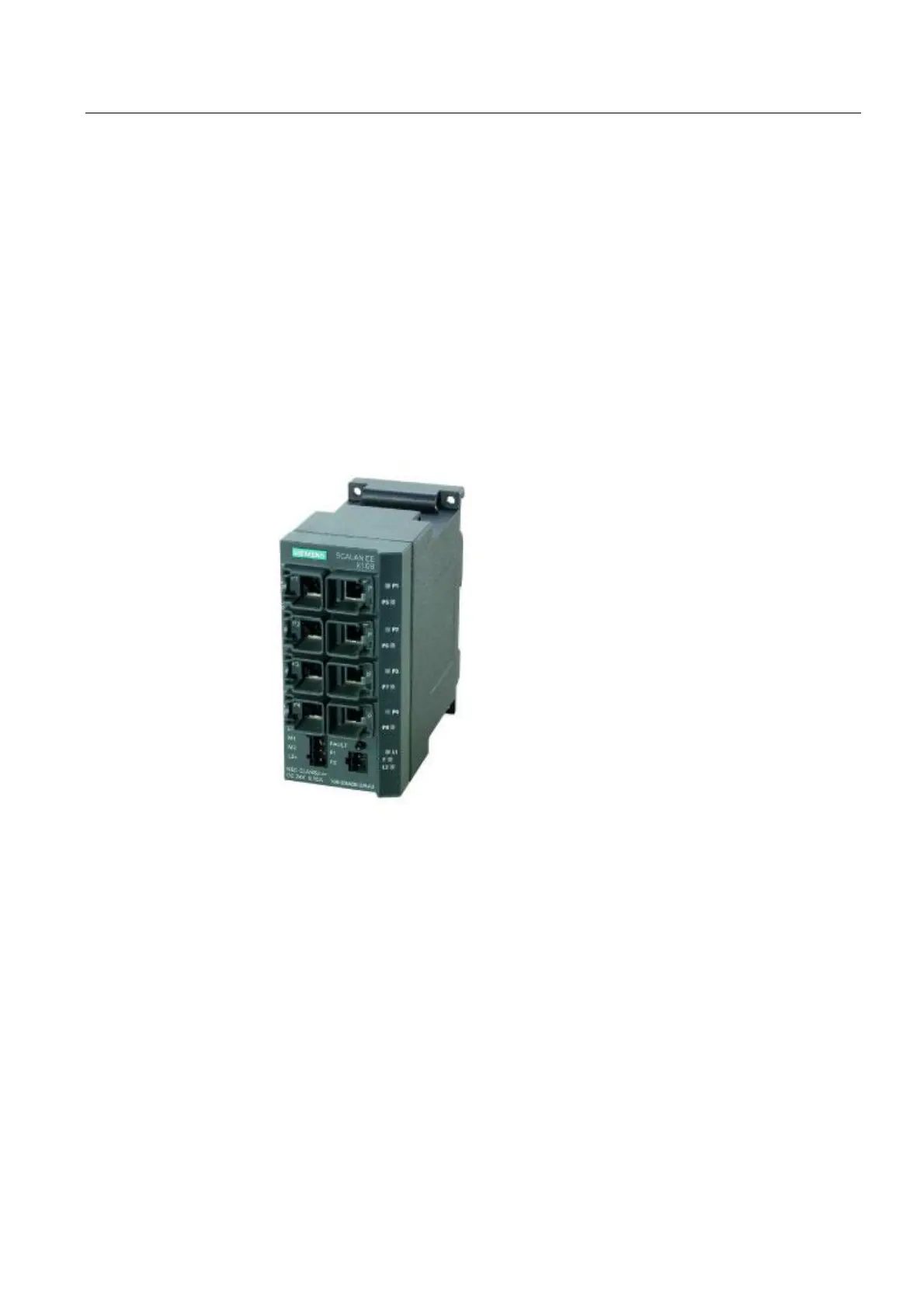

Figure 3-5 SCALANCE X108
