Installation, connecting up, sources of problems
4.1 Assembly
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
43
Uninstalling
To remove the Industrial Ethernet switches of the SCALANCE X-100 product line from the
DIN rail:
1. First disconnect all connected cables.
2. Use a screwdriver to release the lower DIN rail catch of the device and pull the lower part
of the device away from the rail.

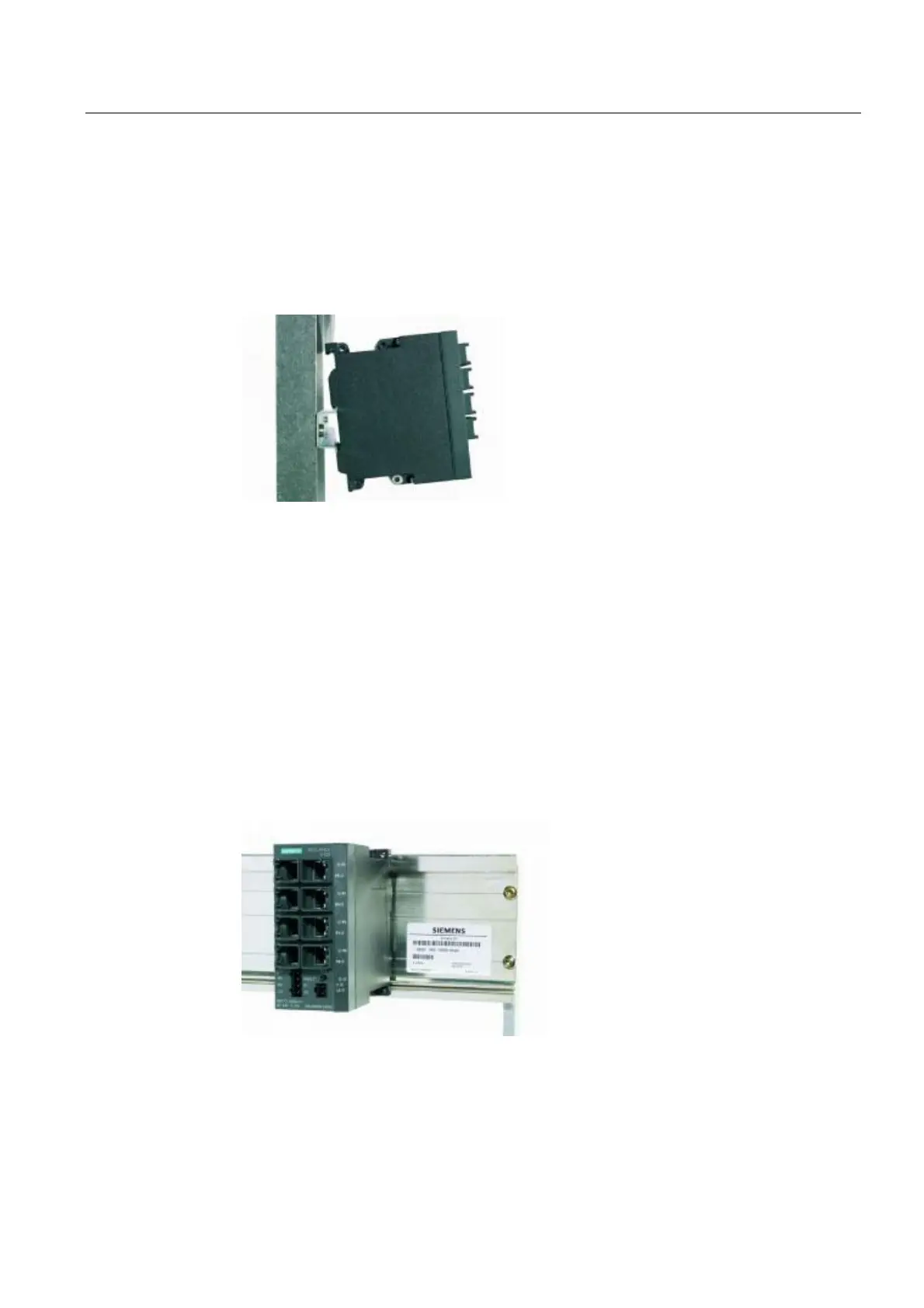

Figure 4-2 SCALANCE X-100 removing from a DIN rail (35 mm)
4.1.2 Installation on a standard rail
Installation on a SIMATIC S7-300 standard rail
1. Place the upper guide at the top of the SCALANCE housing in the S7 standard rail.
2. Screw the Industrial Ethernet switches of the SCALANCE X-100 product line to the
underside of the S7 standard rail.
3. Fit the connectors for the power supply.
4. Fit the connectors for the signaling contact.
5. Insert the terminal blocks into the sockets on the device.
Figure 4-3 SCALANCE X-100 installation on a SIMATIC S7-300 standard rail
