Dimension drawings
8.1 Dimension Drawing
SCALANCE X-100
64 Operating Instructions, 04, A2B00060666D

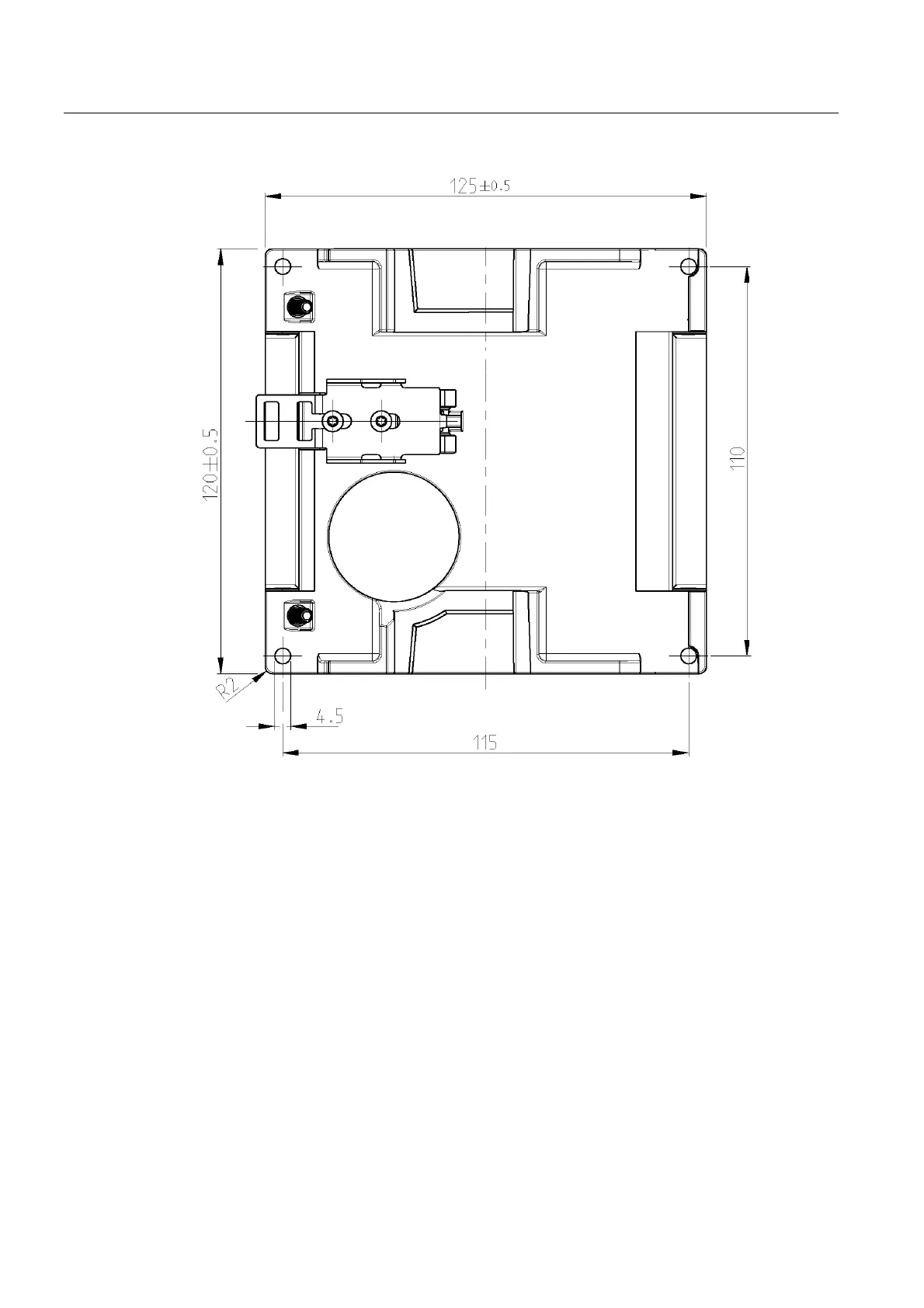

Figure 8-2 Dimension drawing rear view of the SCALANCE X116, X112-2
