Dimension drawings
8.1 Dimension Drawing
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
65

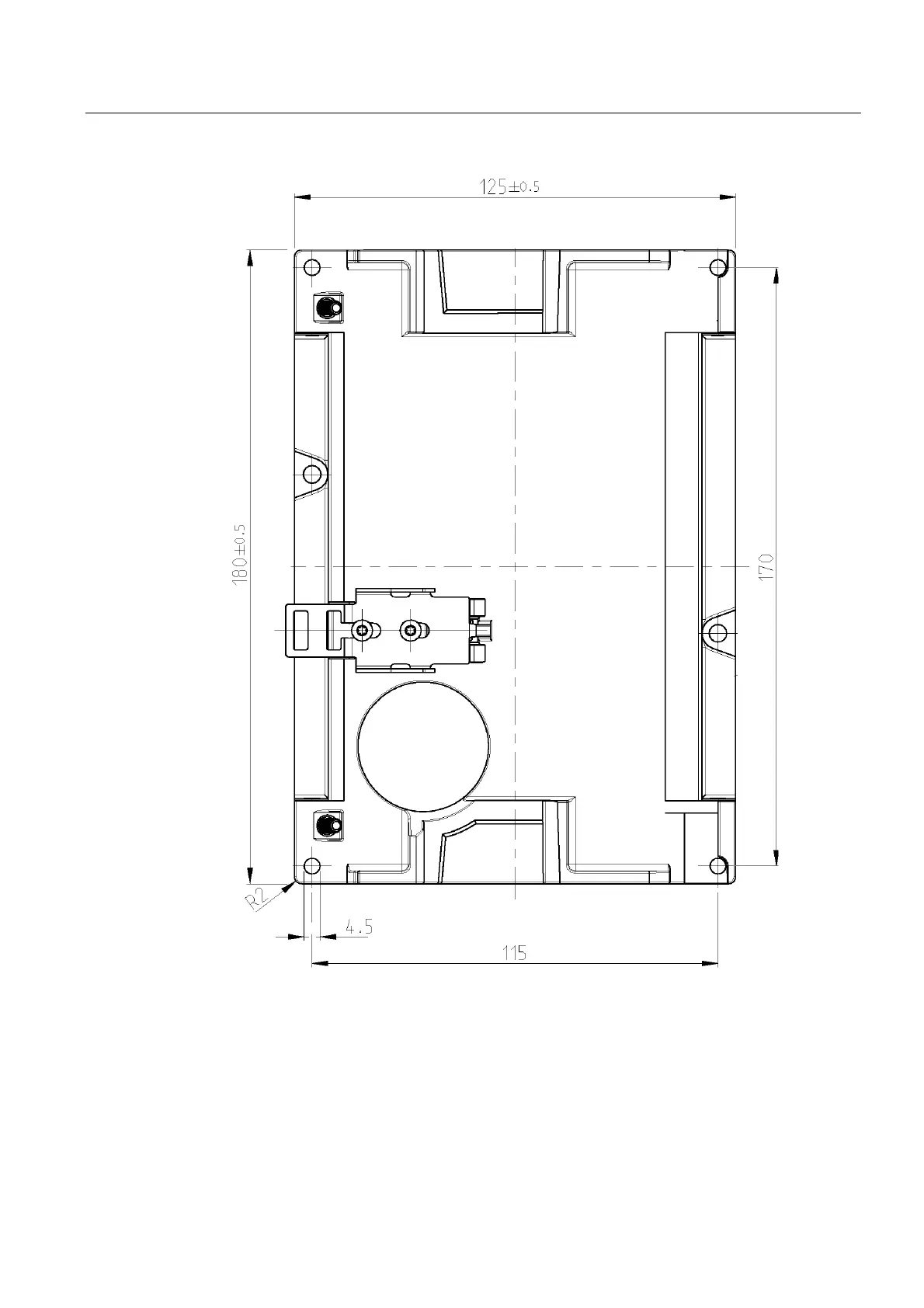

Figure 8-3 Dimension drawing rear view of the SCALANCE X124
