Installation, connecting up, sources of problems
4.2 Connecting up
SCALANCE X-100
Operating Instructions, 04, A2B00060666D
49
Removing the IE FC RJ-45 Plug 180
1. Press on the locking mechanism of the IE FC RJ-45 Plug 180 gently to remove the plug.

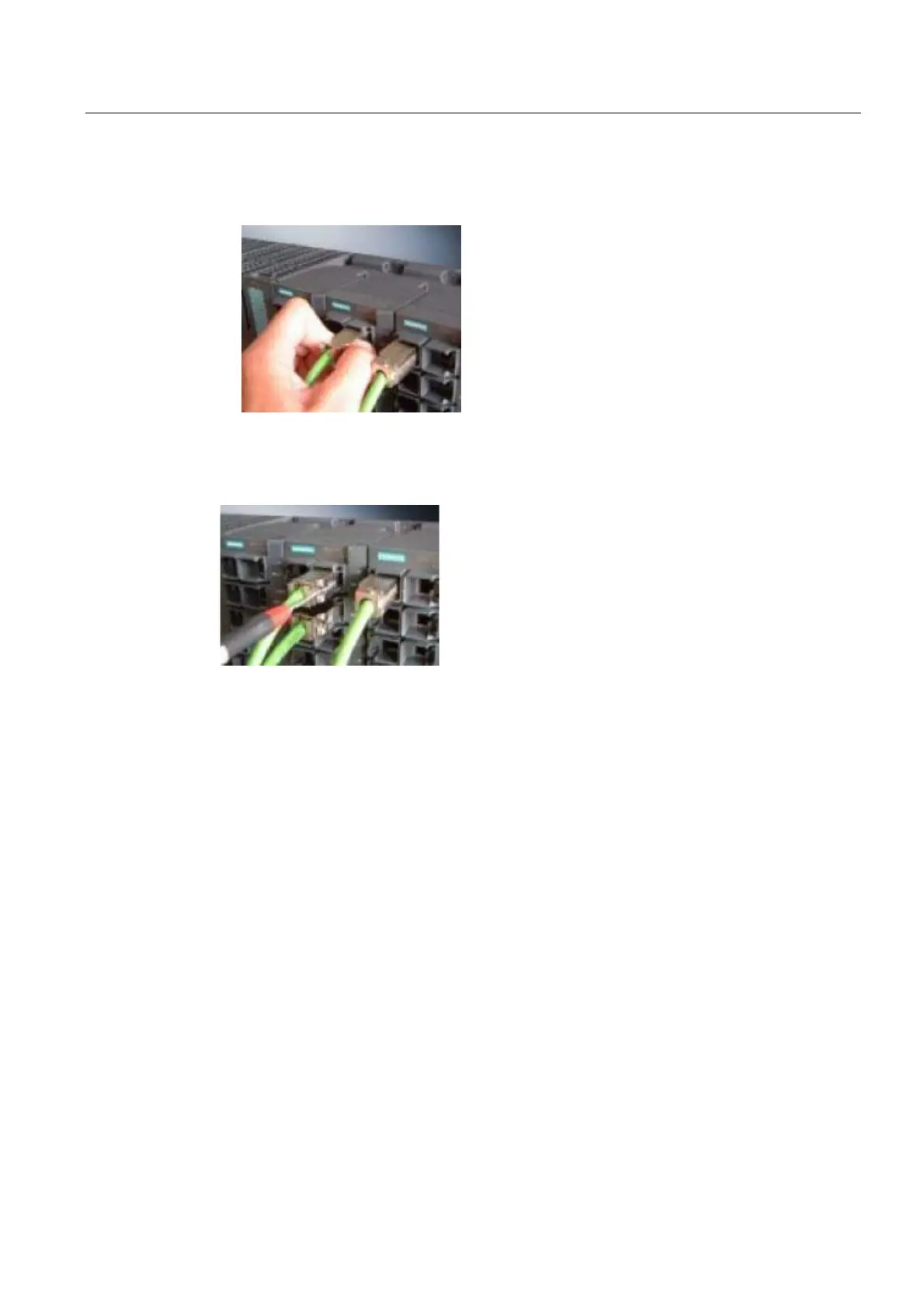

Figure 4-10 Releasing the RJ-45 Plug
If there is not enough space to release the lock with your hand, you can also use a 2.5 mm
screwdriver. You can then remove the IE FC RJ-45 Plug 180 from the twisted pair socket.
Figure 4-11 Releasing the RJ-45 Plug with a screwdriver
