Guidelines for Handling Electrostatic
A-3
SIMATIC Rack PC 840 Manual
A5E00104826-03
A.2 Electrostatic Charging
Charging
Anyone who is not conductively connected to the electrical potential of their
surroundings can be electrostatically charged.
The maximum electrostatic voltage values which an operator can be charged with
when contacting the materials stated in the illustration are shown in Fig. A-1.
These values correspond to the specifications of IEC 801-2.
Voltage in kV
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
(kV)
510
20 30 40 50 60 70 80 90 100
rel. humidity
in %
1
3
1 synthetic material
2
wool
3
antistatic material, for example,
wood or concrete
2

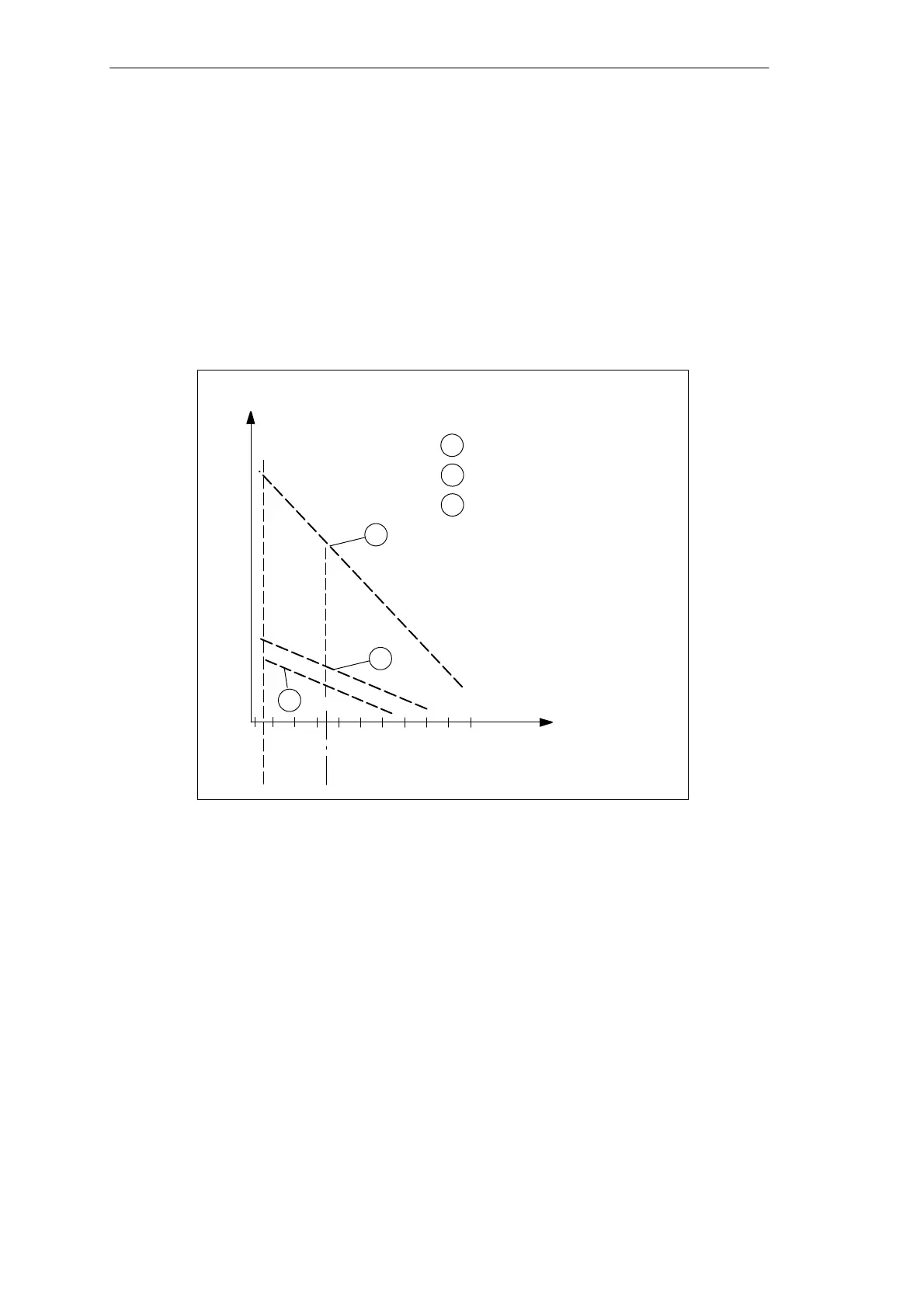

Figure A-1 Electrostatic Voltages which an Operator Can Be Charged with
