S5-115F Manual Analog Value Processing
Front connector terminal assignment
Figure 6-5 shows the input module terminal assignment for resistance thermometers in the case of
the 460 analog input module.
460-7LA12
a=Pin No.
b=Assignment

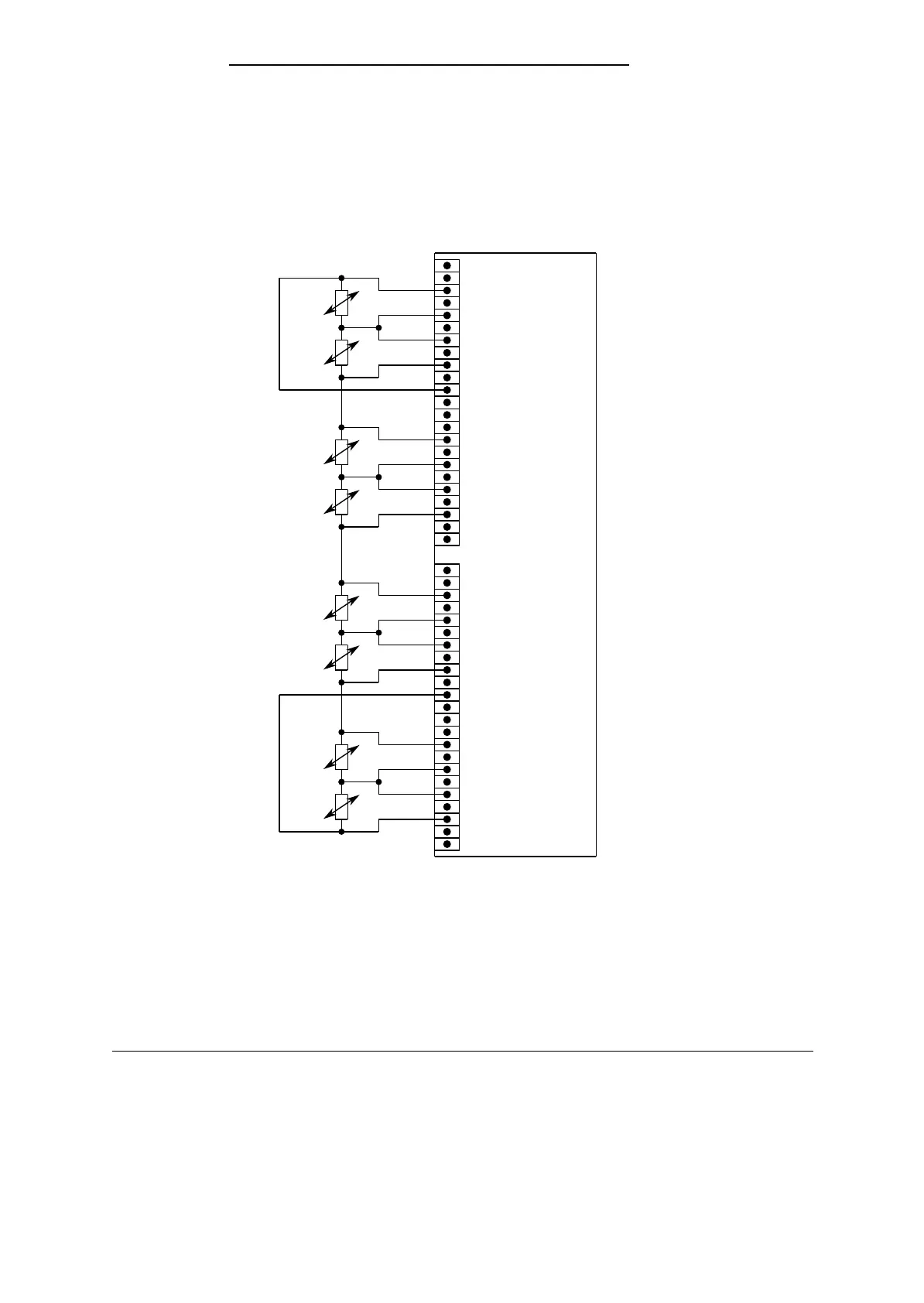

Figure 6-5. Analog Input Module Terminal Assignment in the Case
of the 460 Analog Input Module
ba
1 L+=24V
2
3 M0+
4
5 M0 -
6
7 M1+
8
9 M1 -
10
11 S+
12
13
14
15 M2+
16
17 M2 -
18
19 M3+
20
21 M3 -
22
23 KOMP+
25 KOMP -
26
27 M4+
28
29 M4 -
30
31 M5+
32
33 M5 -
34
35 S -
36
37
38
39 M6+
40
41 M6 -
42
43 M7+
44
45 M7 -
46
47 L -
EWA 4NEB 811 6148-02 6-7
