Technical Specifications S5-115F Manual
8.2.6 Digital Input/Output Modules
Digital Input/Output Module 32 x 24 V DC; 0.5 A, Reaction-Free (6ES5 482-7LA11)
Technical Specifications
Number of inputs 16
Floating yes (optocoupler)
- isolated in groups of 8
Input voltage
- rated value 24 V DC
The technical specifications for the inputs correspond to
those of the 6ES5 430-7LA11 digital input module.
Number of outputs 16
Floating yes (optocoupler)
- isolated in groups of 8
Output current
at ”1” signal
- rated value 0.5 A
The technical specifications for the outputs correspond
to those of the 6ES5 451-7LA11 digital output module.
Output 0...3 and 4...7 can be switched in
8...11 and 12...15 parallel
Parallel current 0.8 x I
rated
Permissible current
of outputs 100 % at 35 °C
50 % at 55 °C
(referred to the sum
of the currents of a
group)
Current consumption
- from 5 V (internal) max. 50 mA
Power loss typ. 18 W
Weight approx. 0.7 kg (1.54 lb.)
Setting for IM 306 16-channel
The inputs and outputs are referenced under the same
address (e.g. I 0.0 to I 1.7 and Q 0.0 to Q 1.7).
Exemple: For module start address ”0”, you must
address as follows:

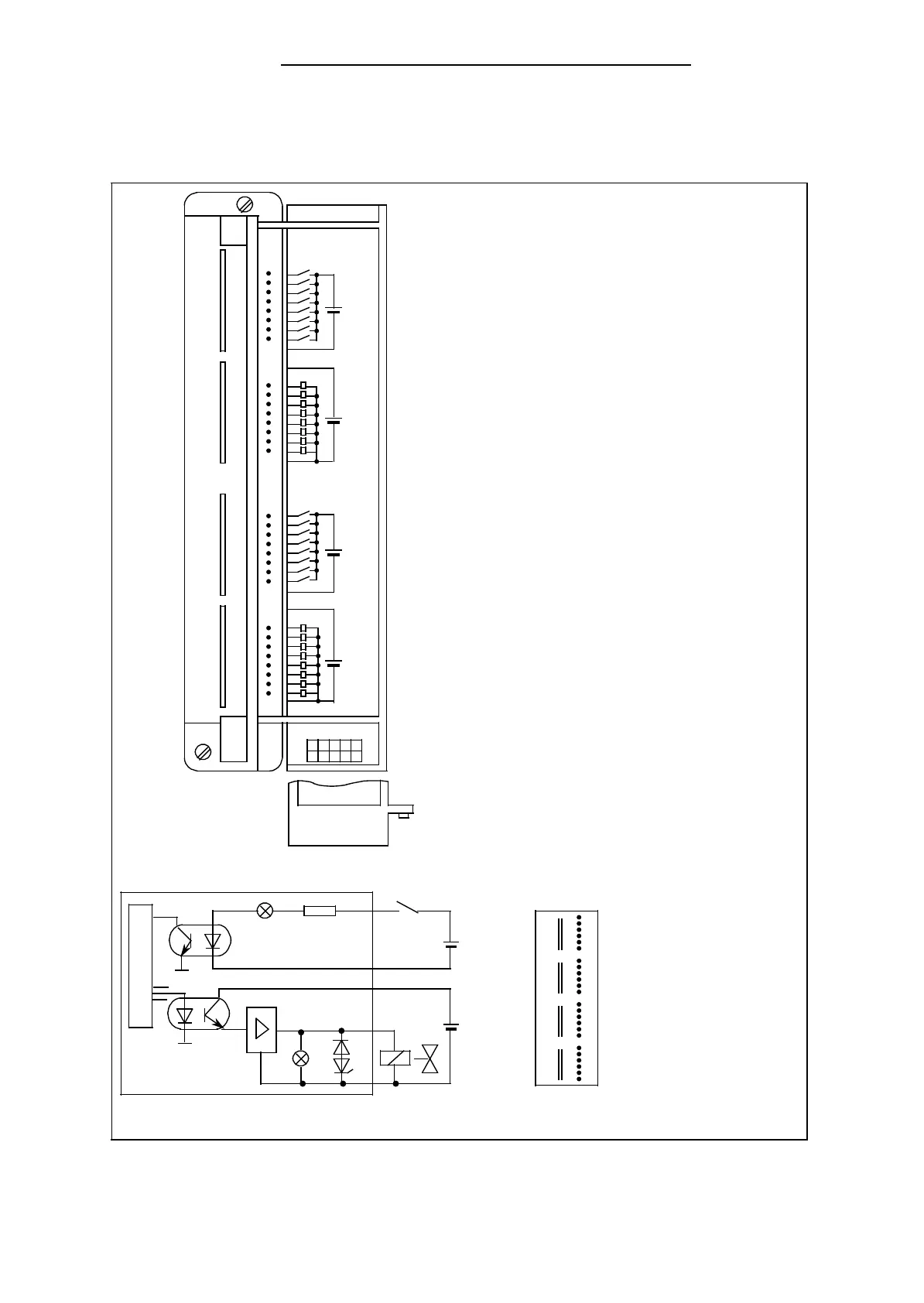

Terminal assignment
Simplified schematic
L+
L+
M
ext.
M
ext.
B
U
S
+
+
+
M
DIGITAL
INPUT/OUTPUT
32x24VDC
6ES5 482-7LA11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
M
M
M
+
IB 0
QB 0
IB 1
QB 1
8-20
EWA 4NEB 811 6148-02
