S5-115F Manual Technical Specifications
8.2.3 Central Processing Unit

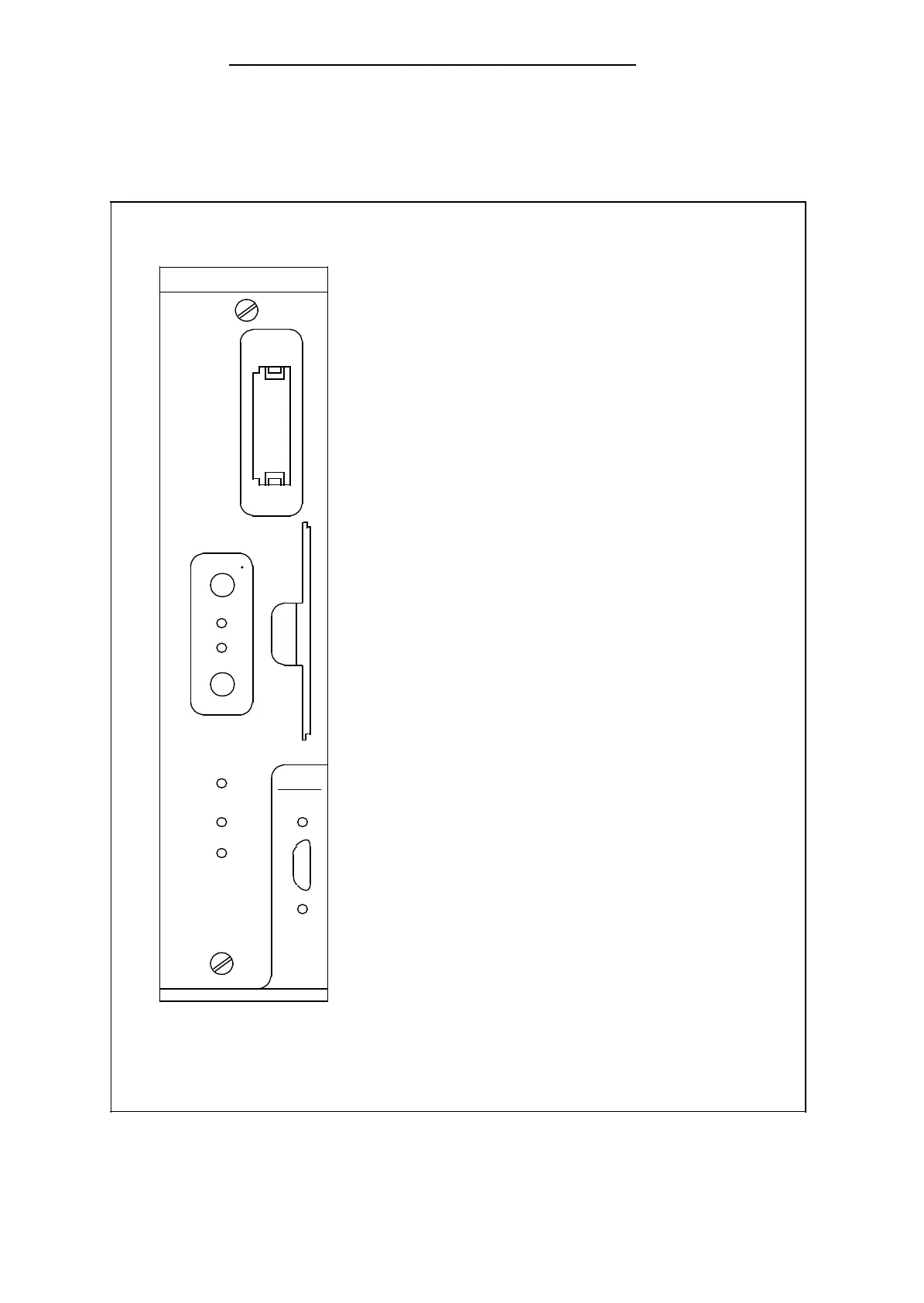

Central Processing Unit CPU 942F (6ES5 942-7UF15)
RN
ST
RN
ST
OR
QVZ
ZYK
BASP
115F
CPU
942
Technical Specifications
Memory capacity (total) max. 18944 statements
- internal memory max. 2560 statements
- memory submodule (RAM)* max. 16384 statements
- memory submodule (EPROM)* max. 16384 statements
- memory submodule (EEPROM)* max. 8192 statements
Execution time
- per binary operation approx. 1.6 µs
- per word operation approx. 1.6 µs to 1.4 ms
Scan time monitoring configurable
Flags 2048**
Timers
- number 128
- range 0.01 to 9990 s
Counters
- number 128
- range 0 to 999 (count up,
count down)
Digital inputs max. 1024
Digital outputs max. 1008
Analog inputs
Analog outputs - total max. 128
Organization blocks max. 256
Program blocks max. 256
Function blocks max. 256 (can be assigned
parameters)
Sequence blocks max. 256
Data blocks max. 252
Operations set approx. 170 operations
Current consumption
- from 5 V (internal) 0.8 A
Power losses of
the module typ. 4 W
Weight approx. 1.5 kg (3.3 lbs.)
* Permissible memory submodules ( Section 2.3.2)
** FW 0 is reserved for the logical program counter.
FW 2 to FW 198 (F 2.0 to F 199.7) permissible for user program.
FW 200 to FW 254 (F 200.0 to F 255.7) are only permissible in blocks as
scratch flags. Scratch flags must be defined, set or reset at the start of
block execution and also after conditional or unconditional block
calls. This avoids data exchange with other blocks.
EWA 4NEB 811 6148-02
8-9
