Siemens SIMATIC S5-115F User Manual

S5-115F Manual Technical Specifications
Digital Output Module 16 x 24 V DC; 2A, Floating, Reaction-Free (6ES5 454-7LA11)
+
+
+
+
Technical Specifications
Number of outputs 16
Floating yes (optocoupler)
- isolated in groups of 4
Load voltage L+
- rated value 24 V DC
- permissible range 20 to 30 V
- surge voltage at t 0.5 sec. 35 V
Output voltage
- at ”1” signal min . L + - 3 V
Output current
at ”1” signal
- rated value 2 A
- lamp load max. 10 W
Leakage current
at ”0” signal max. 1 mA
Parallel connection of
outputs not possible
Permissible total current
of outputs, per group 50% (referred to
the sum of the
currents of a group)
Short-circuit protection electronic
Limitation of the voltage
induced on circuit interruption - 15 V
Switching frequency
- inductive load max. 0.27 Hz
- resistive load max. 100 Hz
Cable length
- shielded max. 1000 m (3281 ft.)
- unshielded max. 600 m (1969 ft.)
Insulation rating to VDE 0160
Rated insulation voltage
(between groups) 30 V DC
- insulation group C
- tested with 500 V AC
Rated insulation voltage
(L+ to ) 30 V DC
- insulation group C
- tested with 500 V AC
Current consumption
- from 5 V (internal) 50 mA
- from L + (without load) 8.5 mA / per group
Power losses of
the module typ. 20 W
Weight approx. 1.1 kg (2.43 lb.)

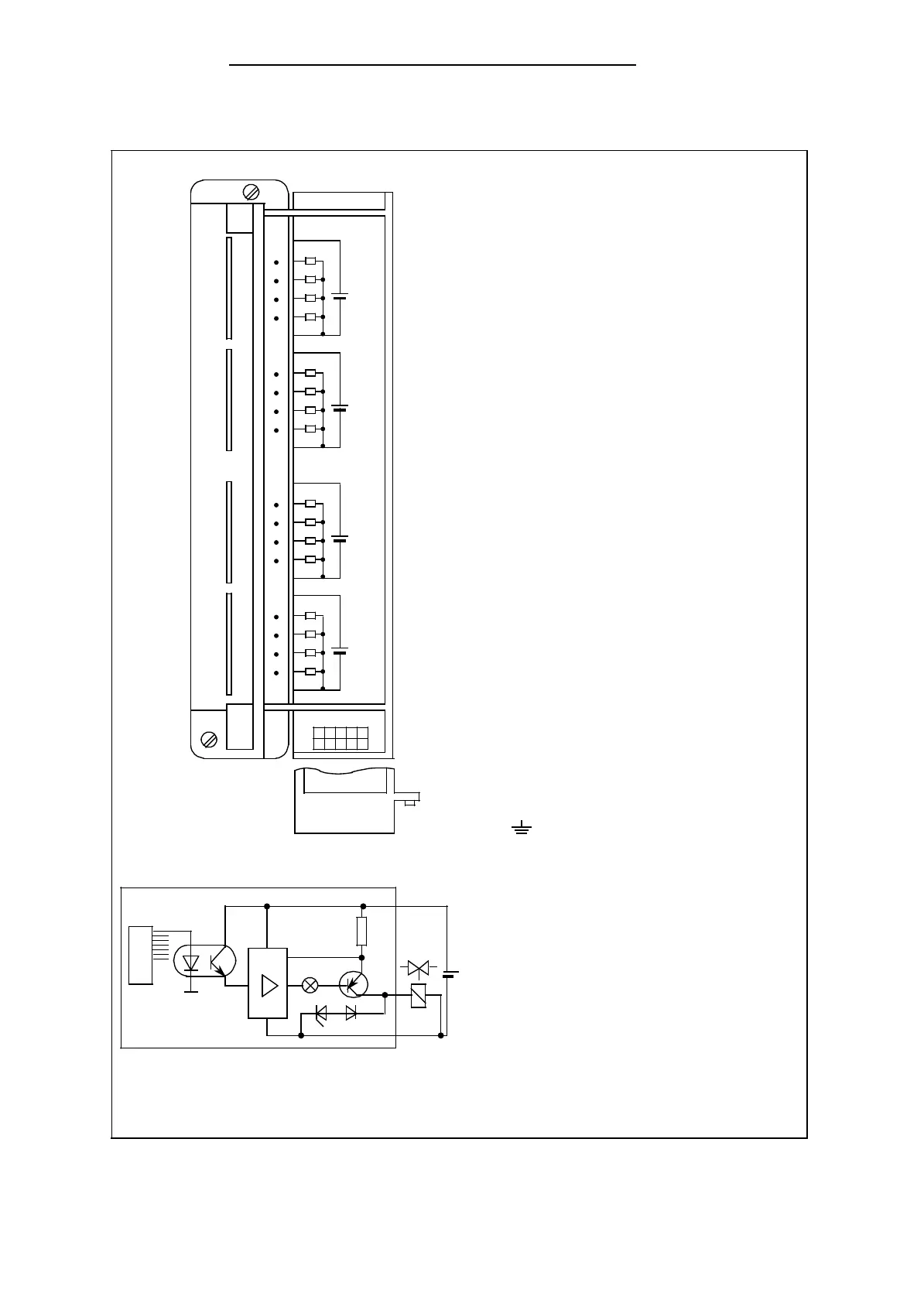

Terminal assignment
Simplified schematic
M
DIGITAL
OUTPUT
16x24V DC
6ES5 454-7LA11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
M
M
M
L+
B
U
S
M ext.
EWA 4NEB 811 6148-02 8-15
