Siemens SIMATIC S7-1200

Introducing the powerful and flexible S7-1200
1.4 Basic HMI panels
Easy Book
22 Manual, 03/2014, A5E02486774-AF
1.4
Basic HMI panels
The SIMATIC HMI Basic Panels provide touch-screen devices for basic operator control and
monitoring tasks. All panels have a protection rating for IP65 and have CE, UL, cULus, and
NEMA 4x certification.

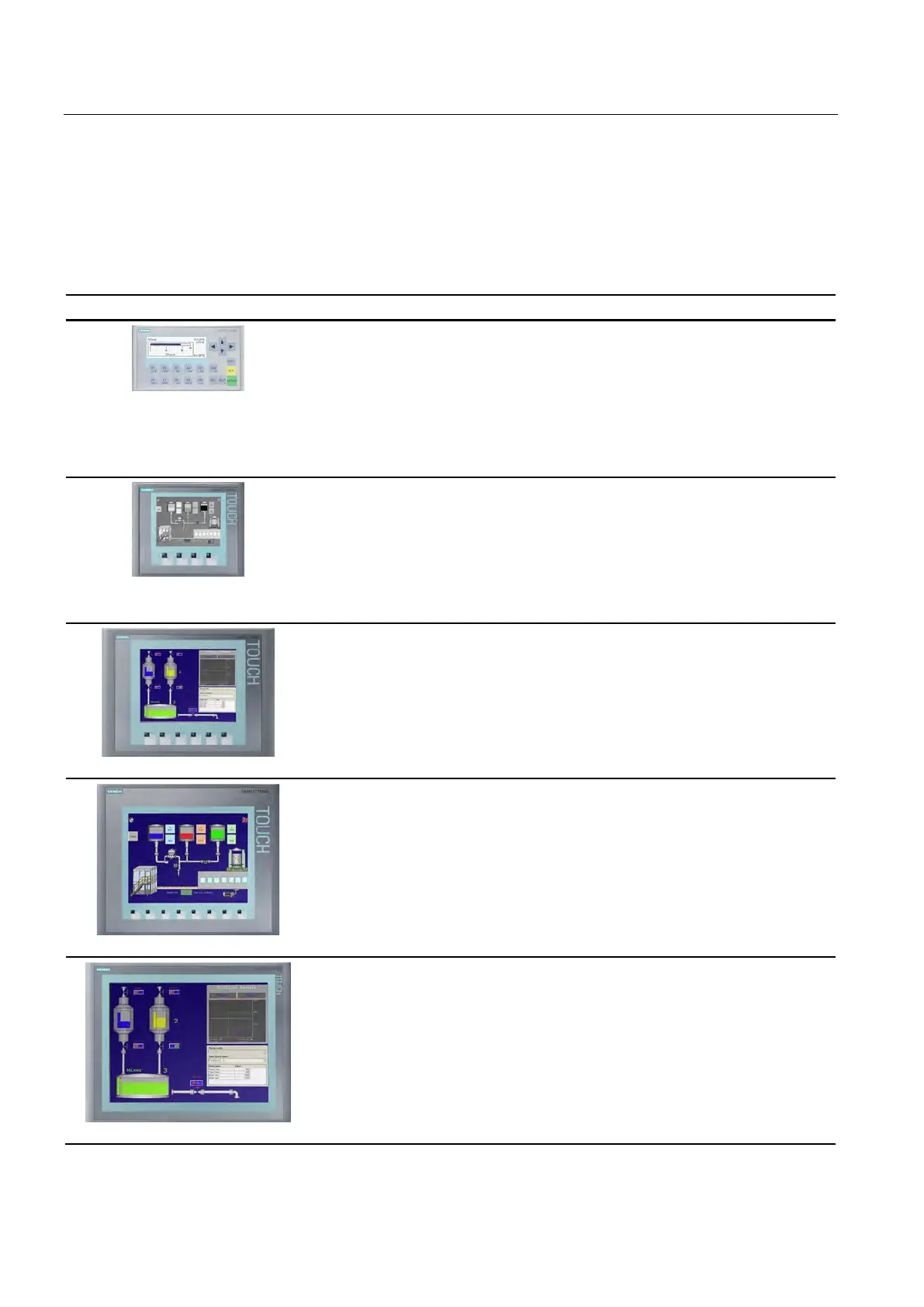

Basic HMI Panel
Description
Technical data
KP 300 Basic PN
3.6" membrane keyboard with 10 freely
configurable tactile keys
• Mono (STN, black/white)
• 87 mm x 31 mm (3.6")
• Backlight color programmed (white,
green, yellow, or red)
• Resolution: 240 x 80
• 250 tags
• 50 process screens
• 200 alarms
• 25 curves
• 40 KB recipe memory
• 5 recipes, 20 data records, 20 entries
KTP 400 Basic PN
4" touch screen with 4 tactile keys
• Mono (STN, gray scale)
• 76.79 mm x 57.59 mm (3.8")
Portrait or landscape
• Resolution: 320 x 240
• 250 tags
• 50 process screens
• 200 alarms
• 25 curves
• 40 KB recipe memory
• 5 recipes, 20 data records, 20 entries
KTP 600 Basic PN
6" touch screen with 6 tactile keys
• Color (TFT, 256 colors) or Mono
(STN, gray scales)
• 115.2 mm x 86.4 mm (5.7")
Portrait or landscape
• Resolution: 320 x 240
• 500 tags
• 50 process screens
• 200 alarms
• 25 curves
• 40 KB recipe memory
• 5 recipes, 20 data records, 20 entries
KTP 1000 Basic PN
10" touch screen with 8 tactile keys
• Color (TFT, 256 colors)
• 211.2 mm x 158.4 mm (10.4")
• Resolution: 640 x 480
• 500 tags
• 50 process screens
• 200 alarms
• 25 curves
• 40 KB recipe memory
• 5 recipes, 20 data records, 20 entries
TP 1500 Basic PN
15" touch screen
• Color (TFT, 256 colors)
• 304.1 mm x 228.1 mm (15.1")
• Resolution: 1024 x 768
• 500 tags
• 50 process screens
• 200 alarms
• 25 curves
• 40 KB recipe memory (integrated
flash)
• 5 recipes, 20 data records, 20 entries
