Introducing the powerful and flexible S7-1200
1.5 Mounting dimensions and clearance requirements
Easy Book
Manual, 03/2014, A5E02486774-AF
23

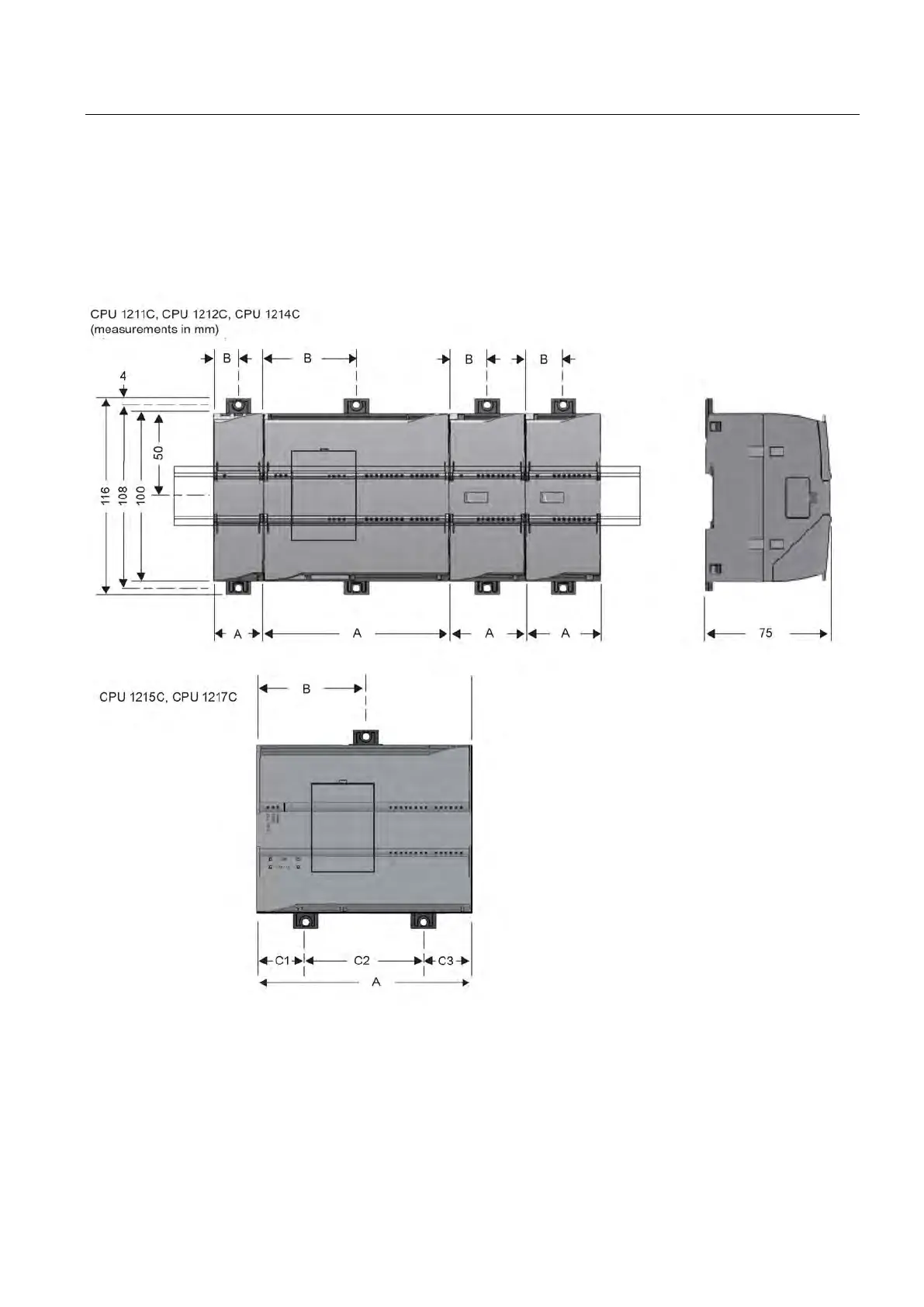

Mounting dimensions and clearance requirements
The S7-1200 PLC is designed to be easy to install. Whether mounted on a panel or on a
standard DIN rail, the compact size makes efficient use of space.
Refer to the
S7-1200 System Manual
for specific requirements and guidelines for installation.
