Siemens SIMATIC S7-1200

STEP 7 makes the work easy
2.10 Changing the call type for a DB
Easy Book
Manual, 03/2014, A5E02486774-AF
35

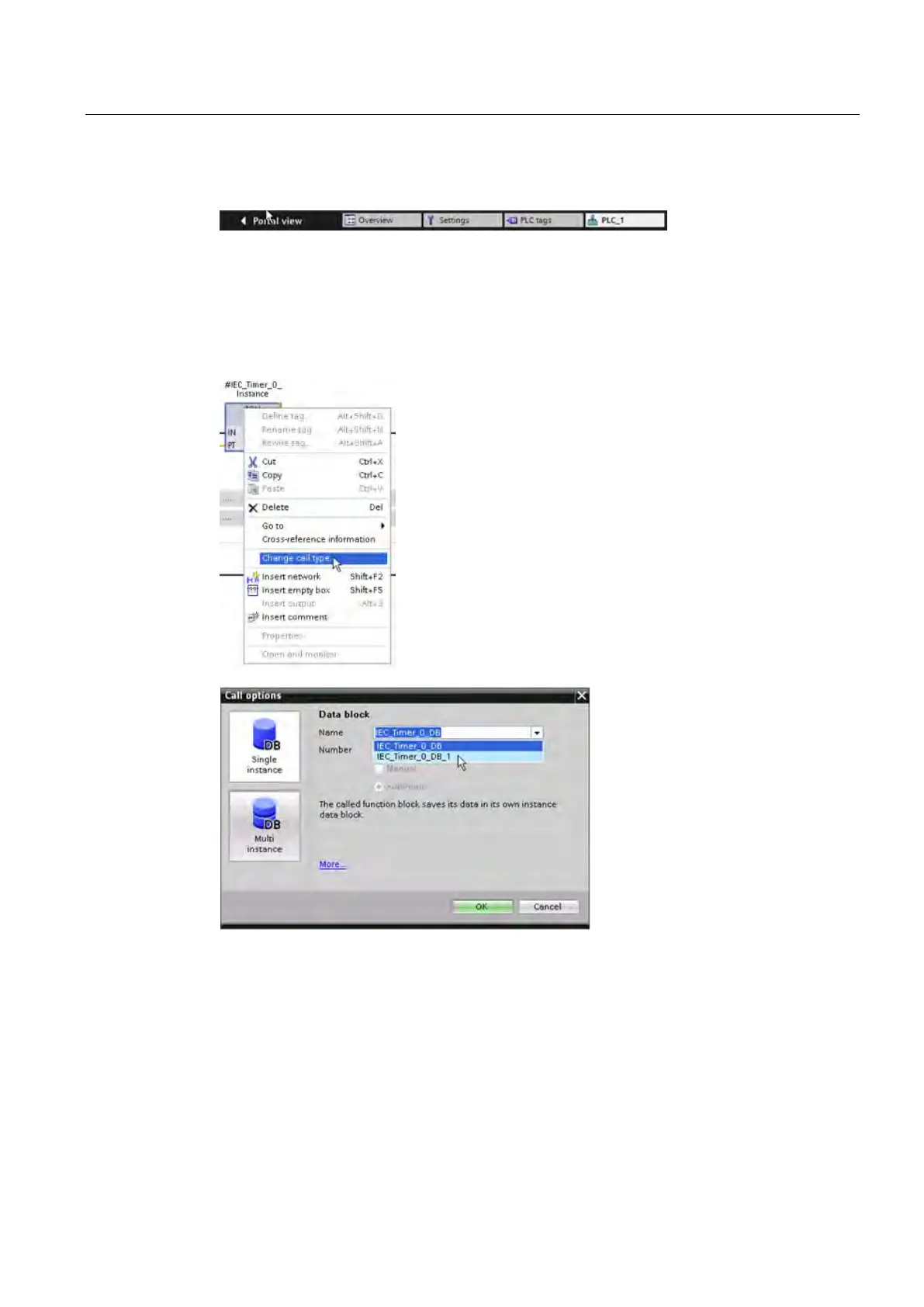

To toggle between the editors that have been opened, click the icons in the editor bar.
2.10
Changing the call type for a DB
STEP
7 allows you to easily create or change the
association of a DB for an instruction or an FB that is in
an FB.
•
You can switch the association between different DBs.
•
You can switch the association between a single-
instance DB and a multi-instance DB.
•
You can create an instance DB (if an instance DB is
missing or not available).
You can access the "Change call type" command either
by right
-clicking the instruction or FB in the program
editor or by selecting the "Block call" command from the
"Options" menu.
The "Call options" dialog allows
you to select a single
-instance
or multi
-instance DB. You can
also select specific DBs from a
drop
-down list of available DBs.
