Siemens SIMATIC S7-1200

PLC concepts made easy
4.4 Memory areas, addressing and data types
Easy Book
Manual, 03/2014, A5E02486774-AF
65
Note
Valid data types that can be accessed by slice are Byte, Char, Conn_Any, Date, DInt,
DWord, Event_Any, Event_Att, Hw_Any, Hw_Device, HW_Interface, Hw_Io, Hw_Pwm,
Hw_Sub
Module, Int, OB_Any, OB_Att, OB_Cyclic, OB_Delay, OB_WHINT, OB_PCYCLE,
OB_STARTUP, OB_TIMEERROR, OB_Tod, Port, Rtm, SInt, Time, Time_Of_Day, UDInt,
UInt, USInt, and Word. PLC Tags of type Real can be accessed by slice, but data block tags
of type Real cann
ot.

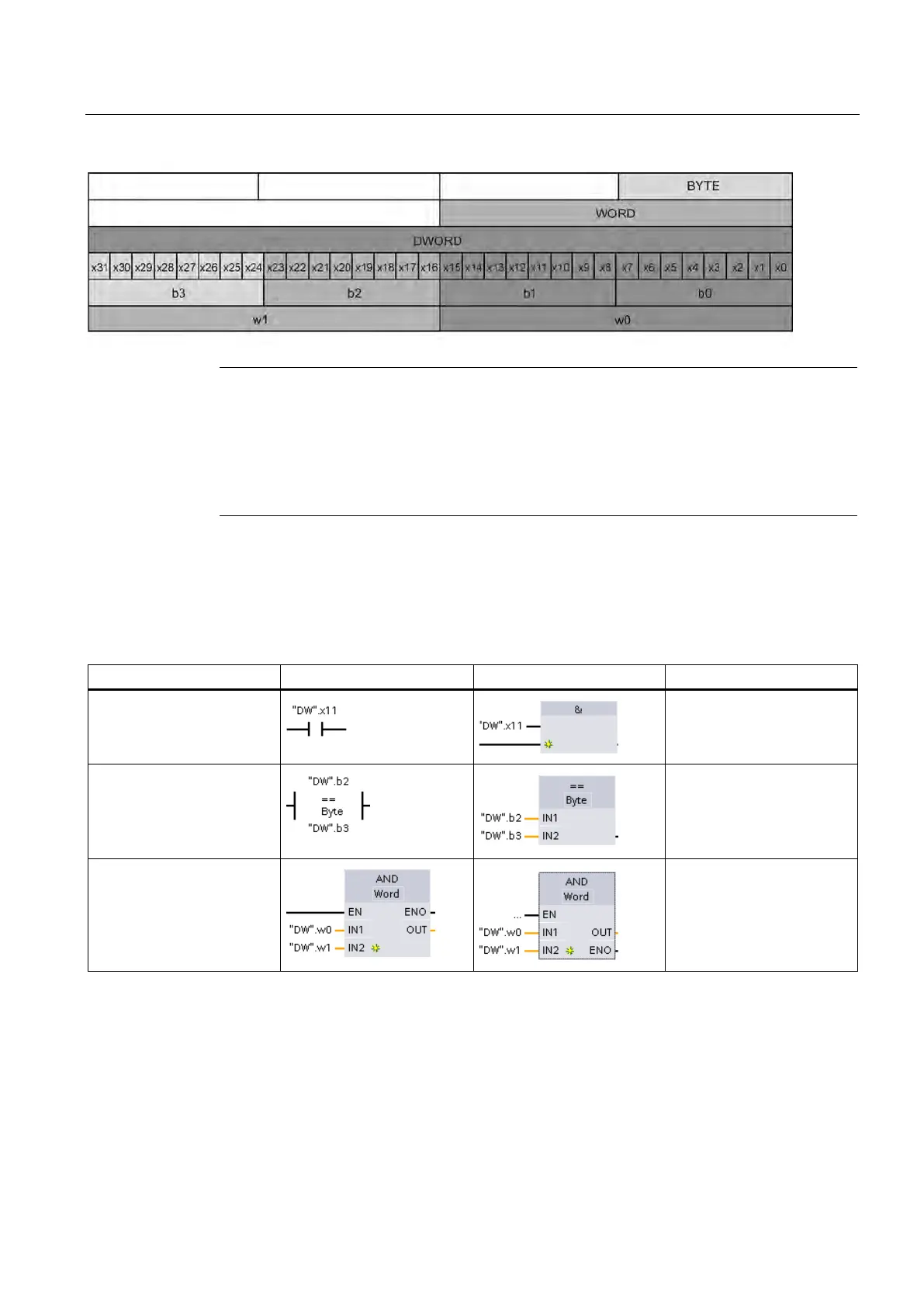

Examples
In the PLC tag table, "DW" is a declared tag of type DWORD. The examples show bit, byte,
and word slice access:
LAD
FBD
SCL
Bit access
IF "DW".x11 THEN
...
END_IF;
Byte access
IF "DW".b2 = "DW".b3
THEN
...
END_IF;
Word access
out:= "DW".w0 AND
"DW".w1;
4.4.4
Accessing a tag with an AT overlay
The AT tag overlay allows you to access an already-declared tag of a standard access block
with an overlaid declaration of a different data type. You can, for example, address the
individual bits of a tag of a Byte, Word, or DWord data type with an Array of Bool.
