Easy to create the device configuration

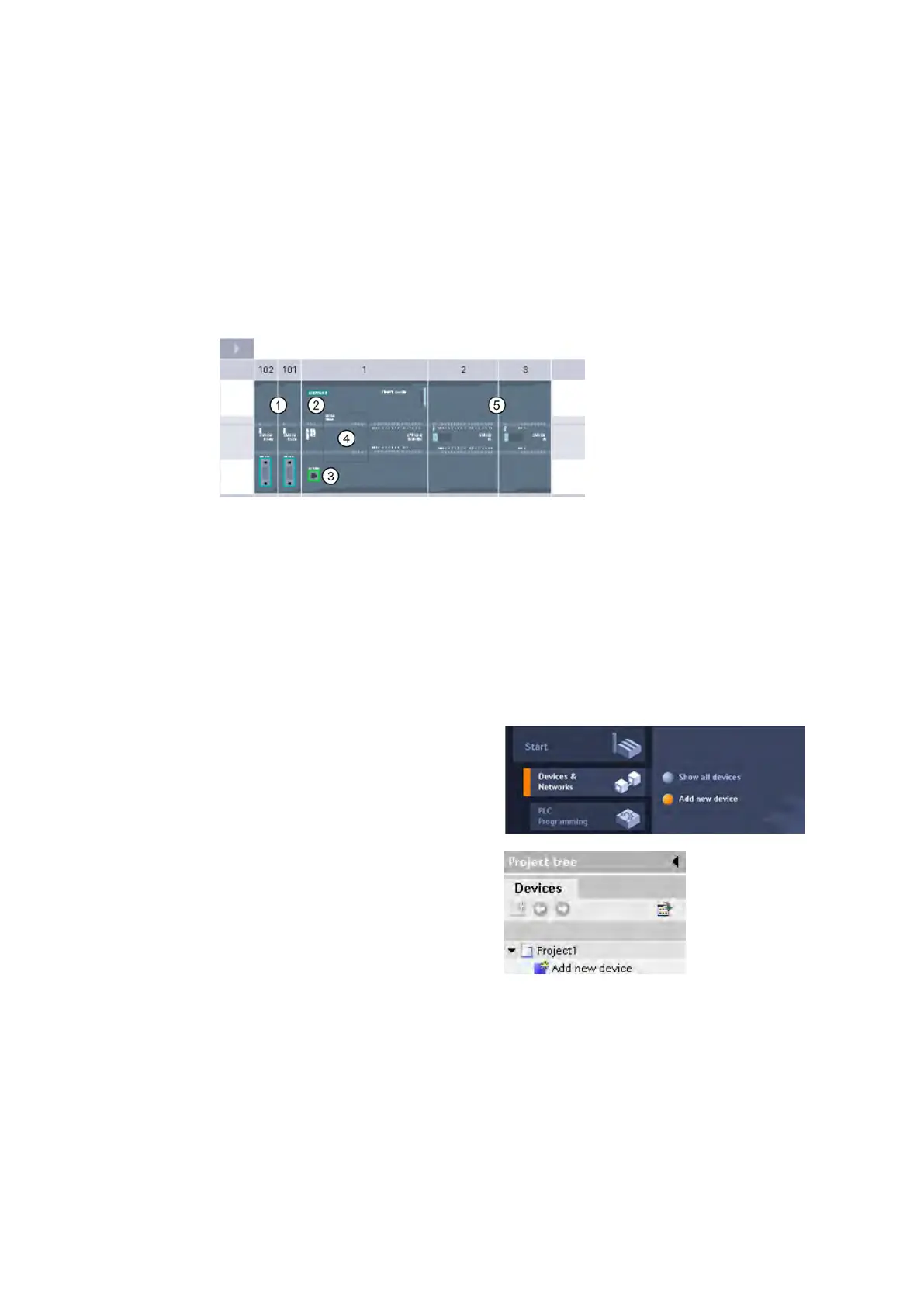

You create the device configuration for your PLC by adding a CPU and additional modules to
your project.
Communications module (CM) or communication processor (CP): Up to 3, inserted in slots
Signal board (SB), communication board (CB) or battery board (BB): up to 1, inserted in the
Signal module (SM) for digital or analog I/O: up to 8, inserted in slots 2 through 9
(CPU 1214C, CPU 1215C and CPU 1217C allow 8, CPU 1212C allows 2, CPU 1211C does
To create the device configuration, add a
device to your project.
In the Portal view, select "Devices &
Networks" and click "Add device".
In the Project view, under the project
name, double-click "Add new device".
