Step 4: Mounting Additional Racks
For S7-400 assemblies c ontaining two or more racks, make allowances for
additional clearance between the racks for installing a fan subassembly or cable
duct.

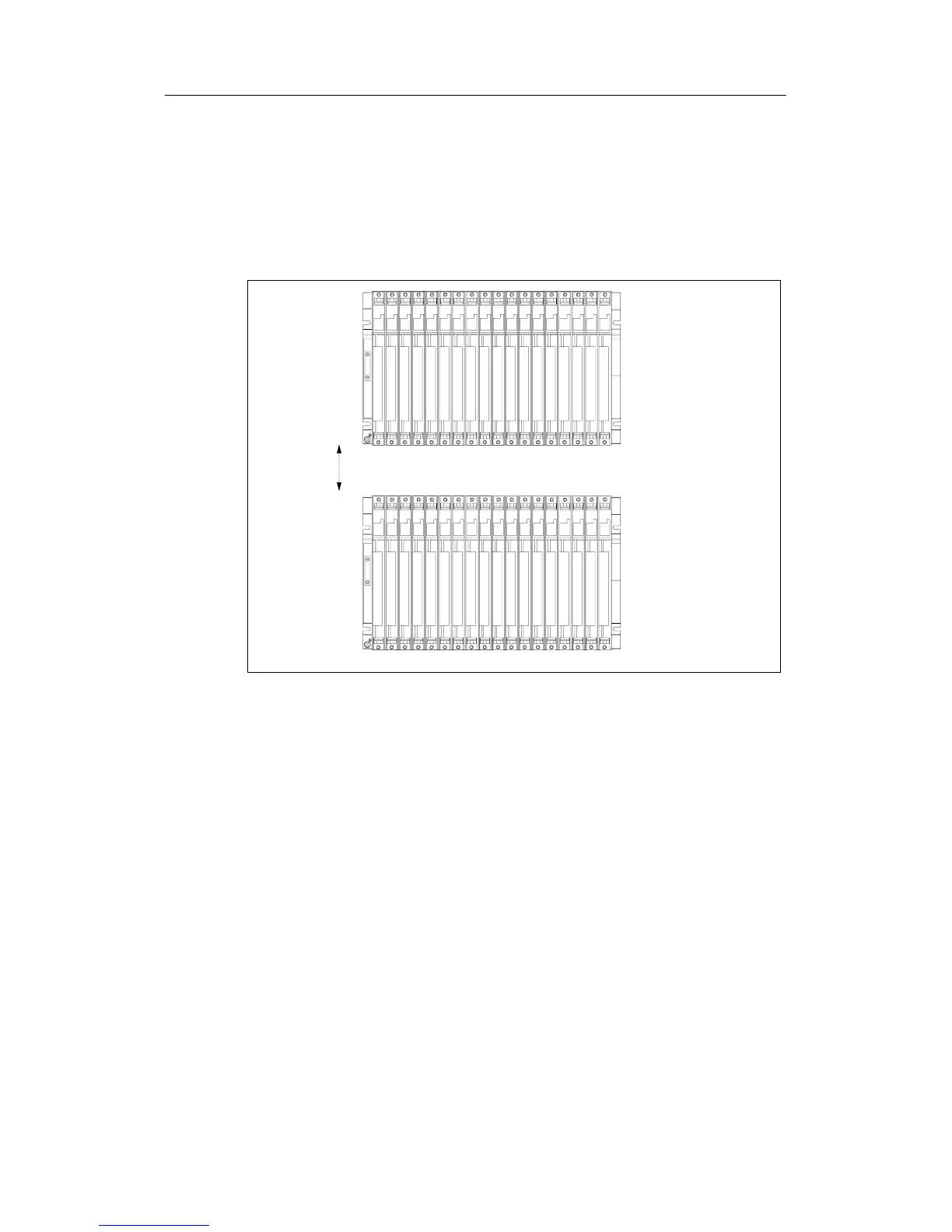

The figure below shows the clearance you must allow between two racks of the
S7-400 during installation.
110 mm
