12.1 Mounting
SIMOCODE pro
188 System Manual, 05/2019, A5E40507475002A/RS-AD/004
12.1.2 Mounting the bus terminal
Sequence for mounting the bus terminal on the SIMOCODE pro S basic unit
Proceed as follows:
Table 12- 1 Mounting the bus terminal on the SIMOCODE pro S basic unit
Step
Description
1
Screw the two PROFIBUS cables to the bus terminal as shown
2 Attach the bus terminal to the SIMOCODE pro S basic unit as shown.

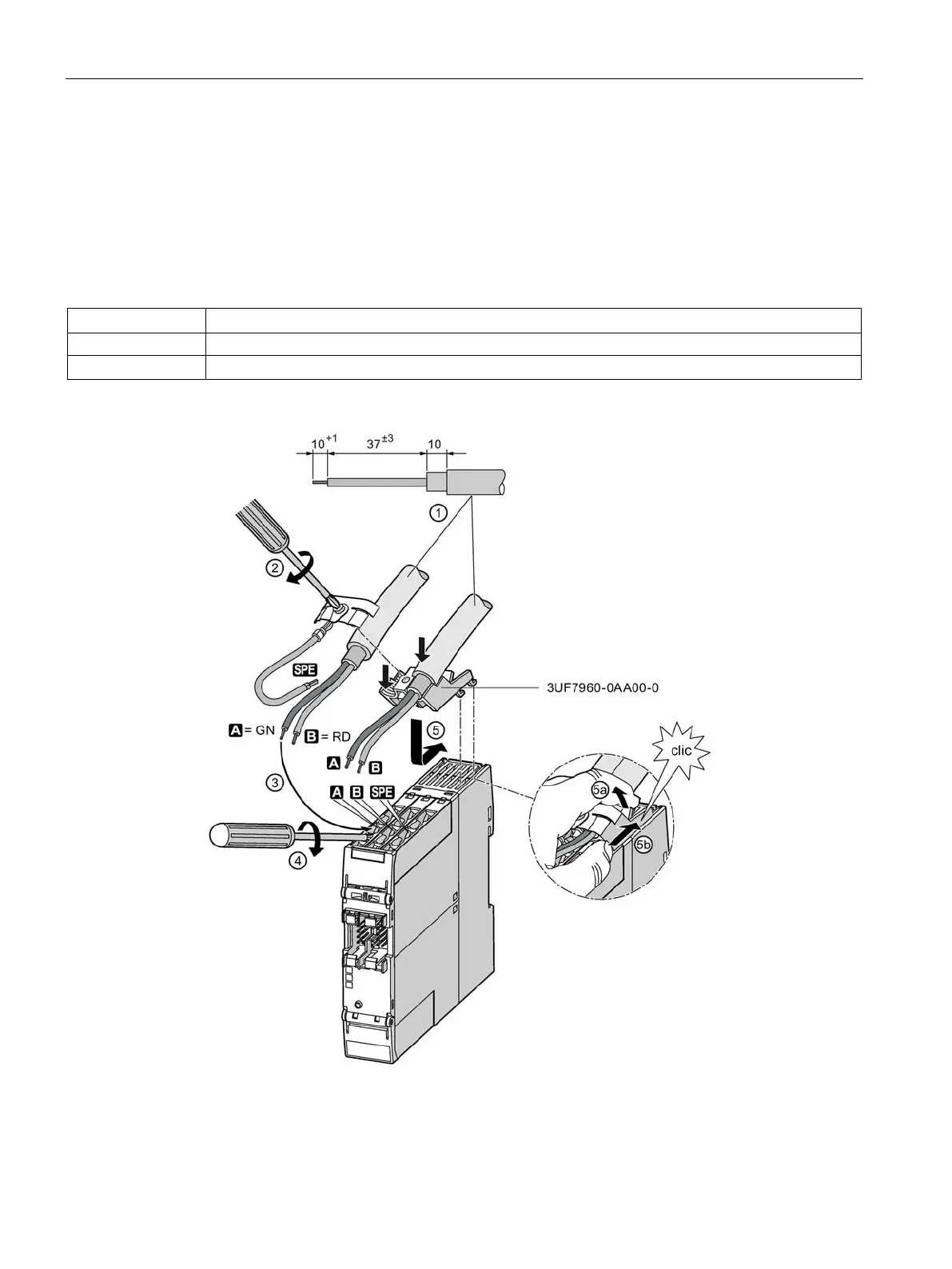

Figure 12-3 Mounting the bus terminal on the SIMOCODE pro S basic unit
