Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
229

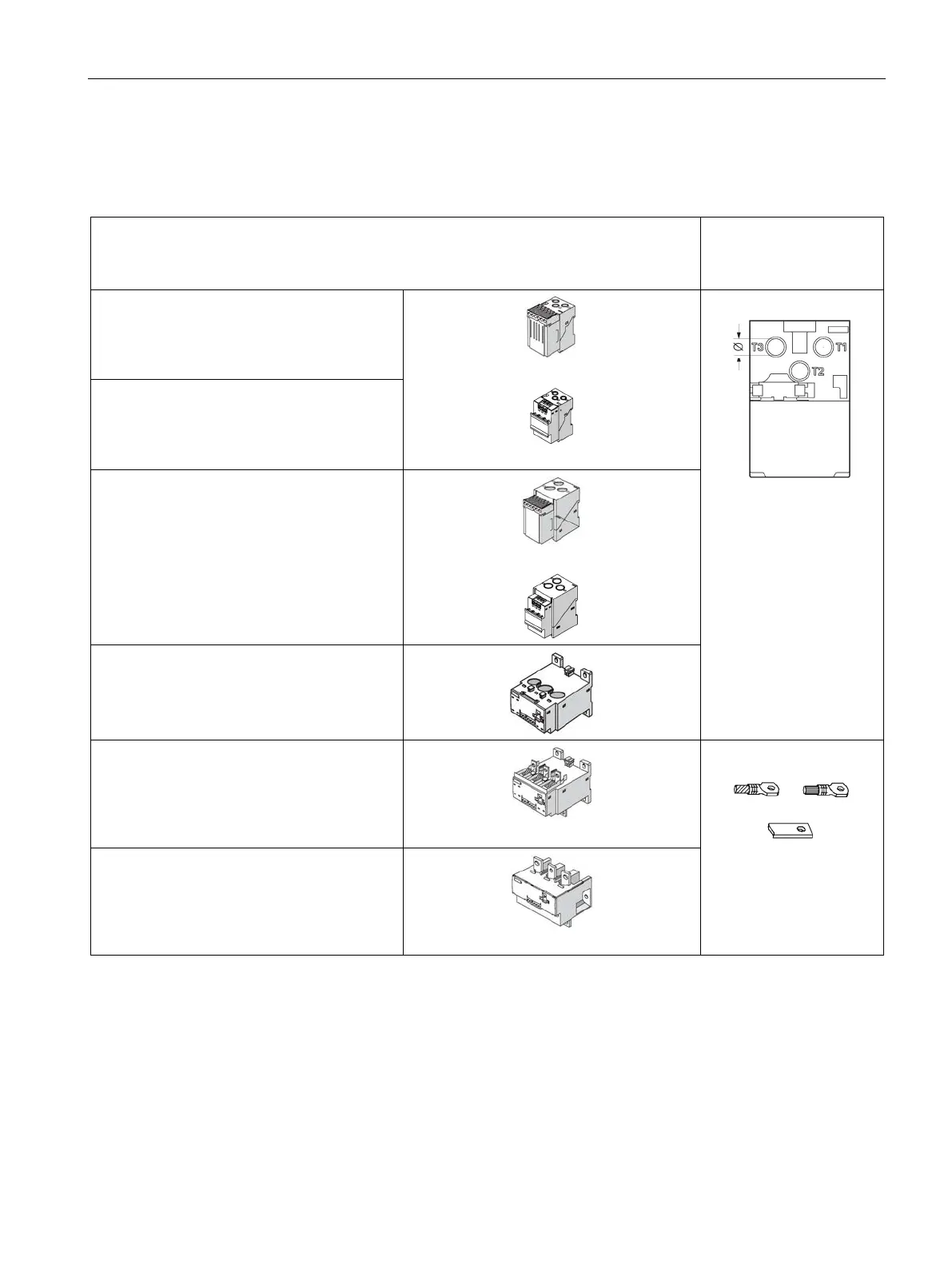

The following table shows the various current / voltage measuring modules:
Table 12- 21 Current / voltage measuring modules
1) Current / voltage measuring module UM
2) 2nd generation current / voltage measuring module UM+
3) 2nd generation current / voltage measuring module UM+ for ATEX dry-running protection
1) 3UF7110-1AA00-0; 0.3 - 3 A
2) 3UF7110-1AA01-0; 0.3 - 4 A
3) 3UF7120-1AA01-0; 0.3 - 4 A
Ø feed-through openings: 7.5 mm
Through-hole connection
1) 3UF7111-1AA00-0; 2.4 - 25 A
2) 3UF7111-1AA01-0; 3 - 40 A
3) 3UF7121-1AA01-0; 3 - 40 A
Ø feed-through openings: 7.5 mm
1) 3UF7112-1AA00-0; 10 - 100 A
2) 3UF7112-1AA01-0; 10 - 115 A
3) 3UF7122-1AA01-0; 10 - 115 A
Ø feed-through openings: 14 mm
1) 3UF7113-1AA00-0; 20 - 200 A
2) 3UF7113-1AA01-0; 20 - 200 A
3) 3UF7123-1AA01-0; 20 - 200 A
Ø feed-through openings: 25 mm
1) 3UF7113-1BA00-0; 20 - 200 A
2) 3UF7113-1BA01-0; 20 - 200 A
3) 3UF7123-1BA01-0; 20 - 200 A
Conductor cross section: 16 to 95 mm²,
Bus connection system
1) 3UF7114-1BA00-0; 63 - 630 A
2) 3UF7114-1BA01-0; 63 - 630 A
3) 3UF7124-1BA01-0; 63 - 630 A
Conductor cross section: 50 to 240 mm²,
