Mounting, wiring, connecting, system interfaces, configuration guidelines
12.3 System interfaces
SIMOCODE pro
238 System Manual, 05/2019, A5E40507475002A/RS-AD/004

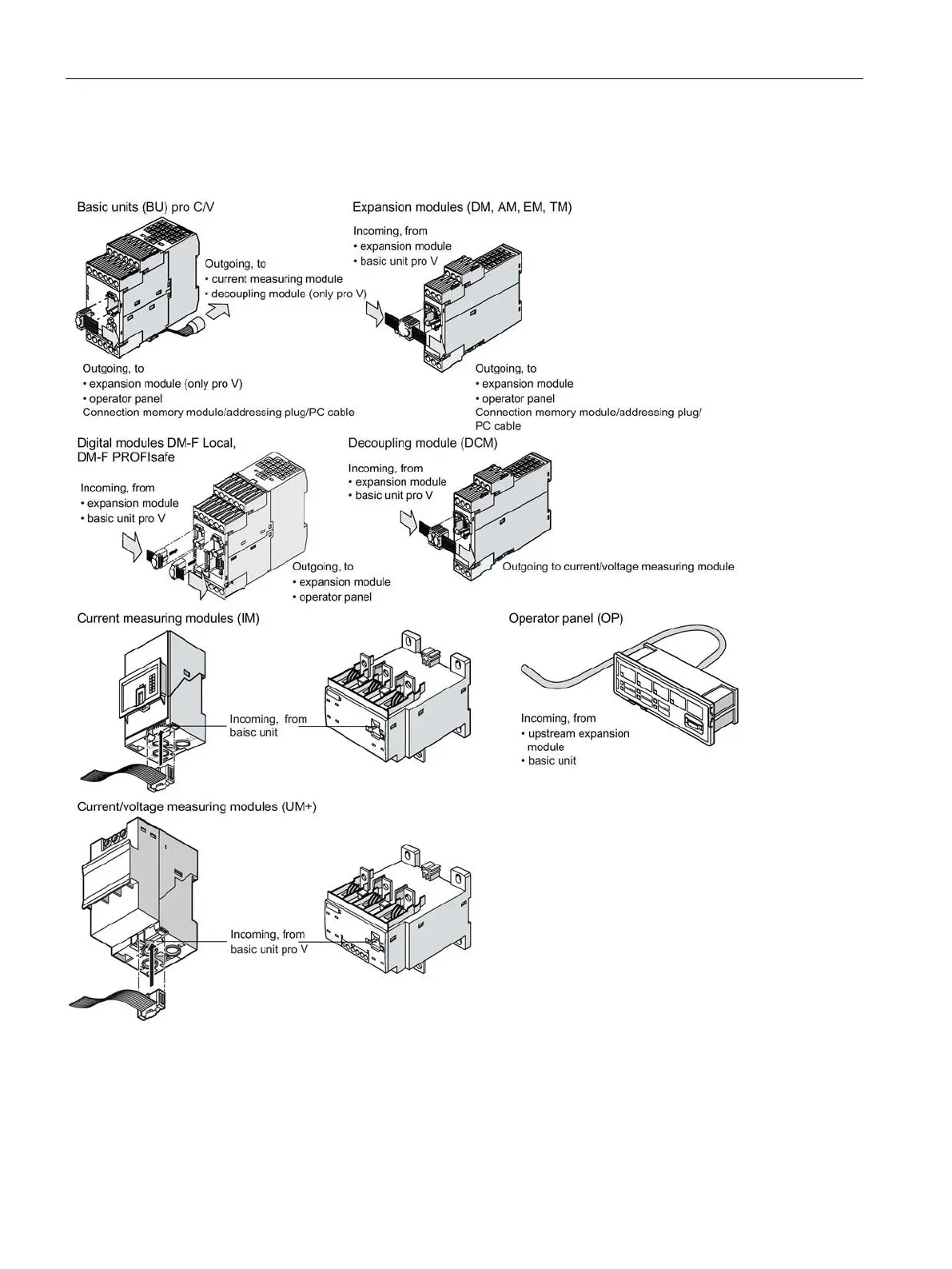

The following figure shows an example for SIMOCODE pro C/V of connecting system
components to the system interfaces:
Figure 12-32 Example of system interfaces - SIMOCODE pro C/V with system component IM, UM+
