3 Engineering
3.1 Hardware configuration
This application example uses the flexible and modularly designed SIMOCODE
motor management system for motors in the low-voltage performance range.

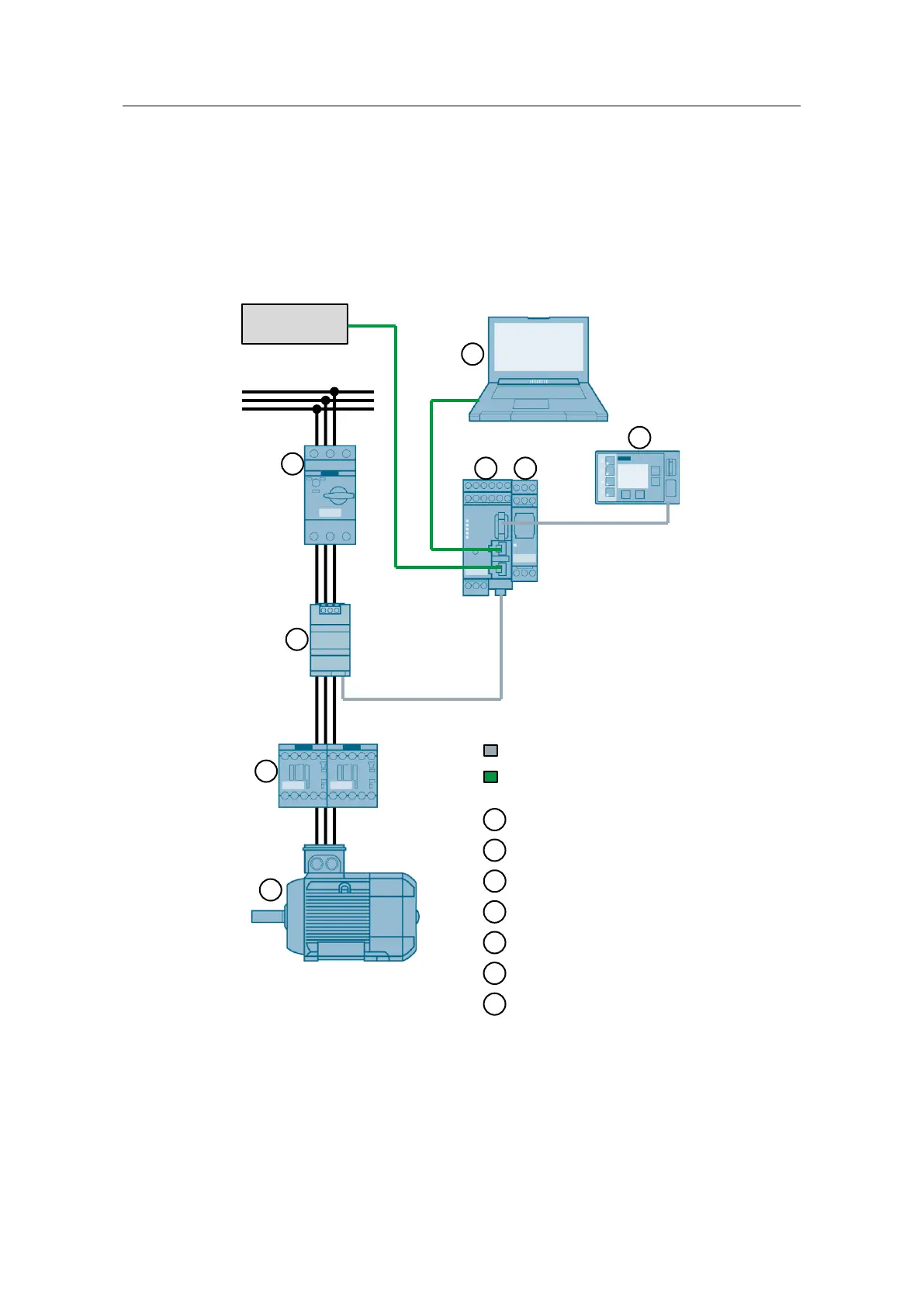

Figure 3-1
PLC
1
SIMOCODE system wiring
PROFINET / IE
2
3
4
5
6
7
SIMOCODE pro V PN (basic unit)
Digital module
Operator panel
SIRIUS circuit breaker
Current / voltage measuring module
SIRIUS contactor combination
PG/PC
1 2
3
4
5
6
7
