10.3 Stator and rotor















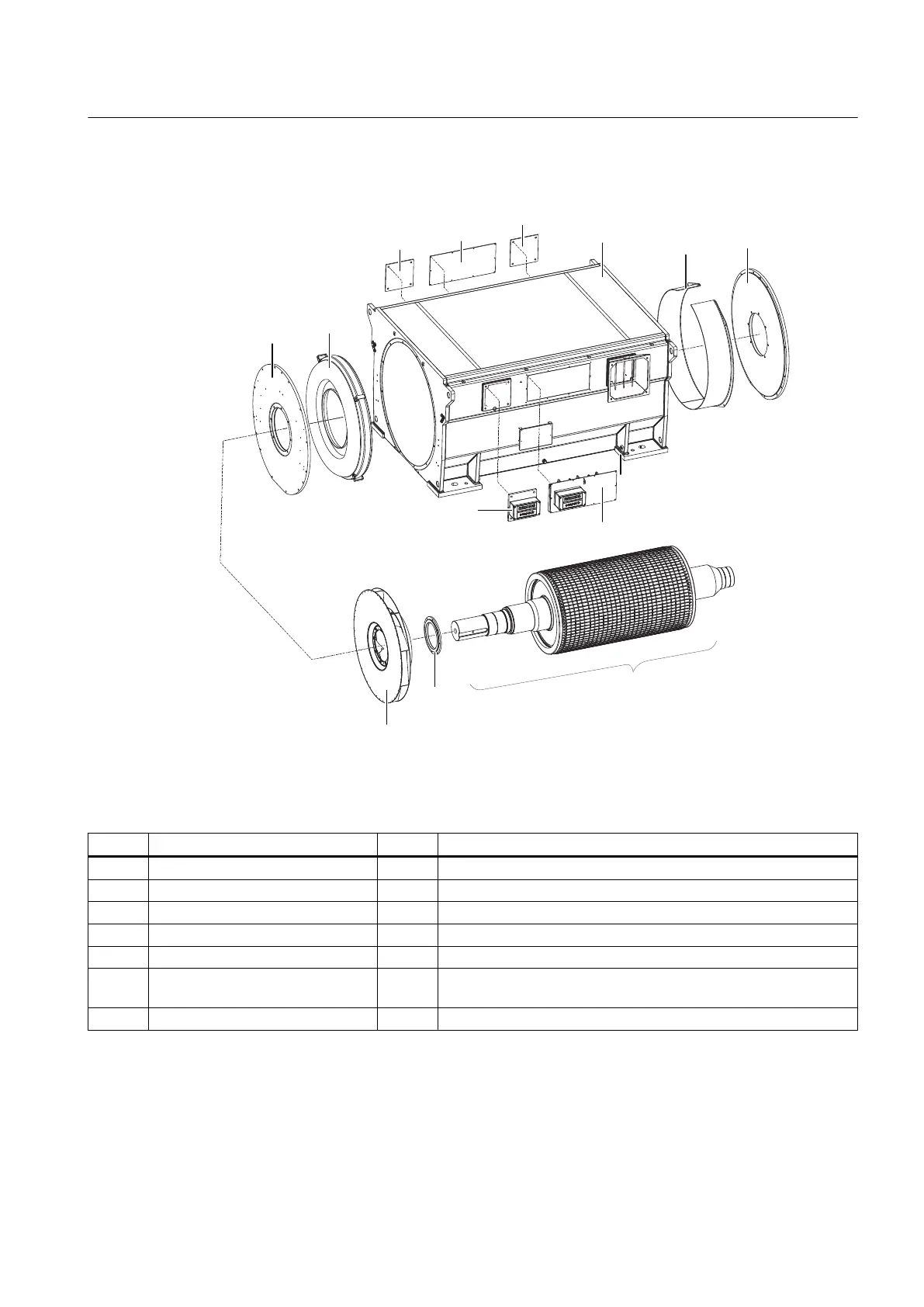

Figure 10-1 Stator and rotor
Table 10-1 Spare parts for the stator and rotor
Part Description Part Description
5.00 End shield, DE 10.31 Air intake insert, DE
6.00 End shield, NDE 10.41 Air intake insert, NDE
7.12 DE fan 10.70 Cover
7.30 Fan hub 10.71 Cover
8.00 Rotor, complete 20.04 Auxiliary terminal box
10.00 Stator frame with laminated core
and winding
57.00 Anti-condensation heating
10.16 Grounding connection
Spare parts
10.3 Stator and rotor
SIMOTICS HV M 1RN76308PR900CG0-Z
Operating Instructions 07/2018 111
