5. Fix the machine to the foundation. The choice of fixing elements depends on the foundation
and is the plant operator's responsibility.

'
[
\

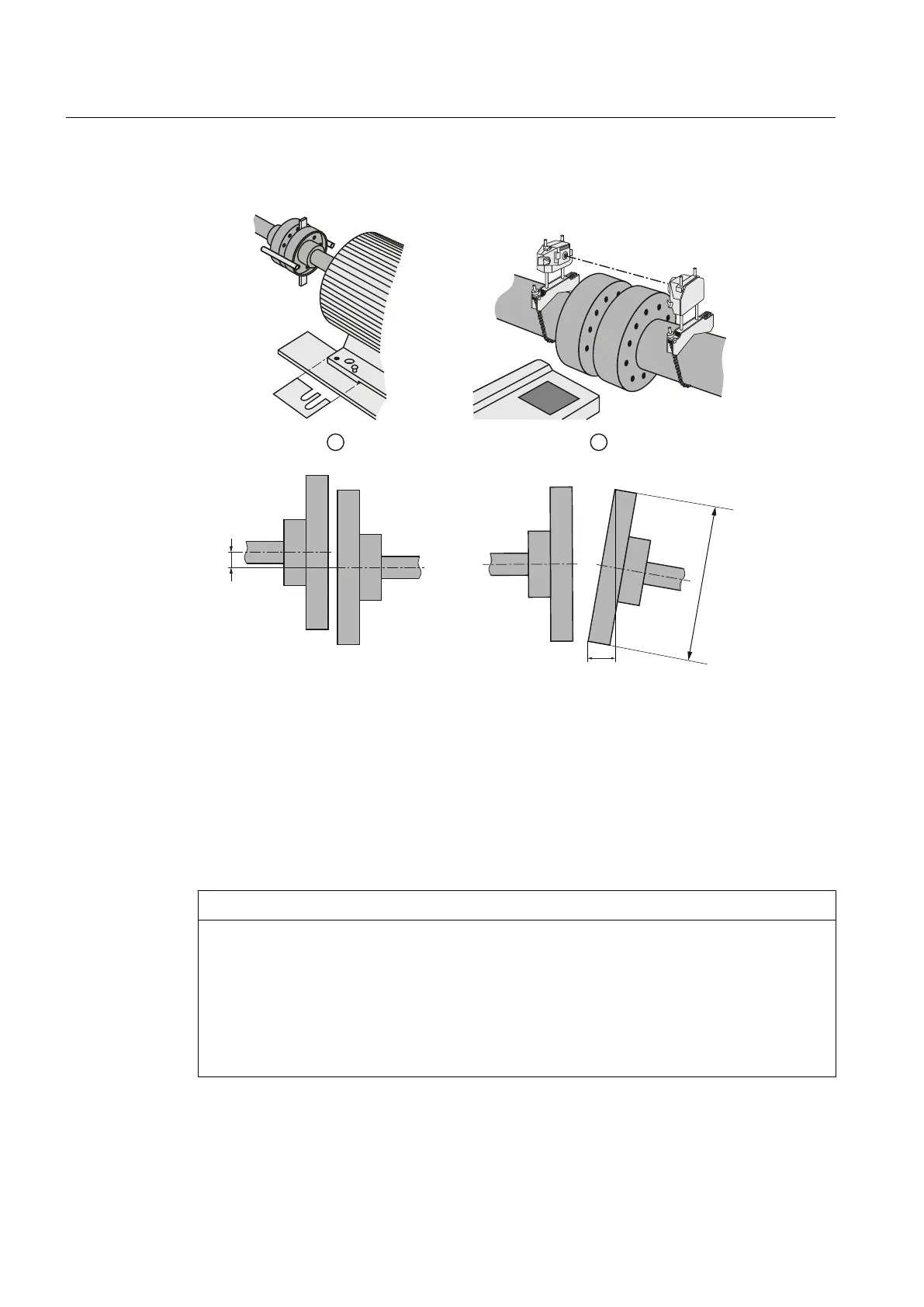

Figure 5-2 Schematic representation of alignment of the machine to the driven machine
6. When aligning, make allowance for the thermal expansion of the machine when the
temperature increases. The information is provided under "Technical specifications".
See also
Technical data and drawings (Page 123)
Details about the alignment accuracy can be found in the Section "Information about the
machine dimension drawing".
NOTICE
Axial and radial forces at the second shaft extension
Large output masses and their centers of gravity outside the shaft extensions can cause
vibration. This can result in damage to bearings, the shaft, or components in the shaft
assembly.
● Comply with permissible loads for the forces on the shaft extensions in accordance with
the configuration data.
● Contact the Service Center, if necessary.
Assembly
5.3 Installing the machine
SIMOTICS HV M 1RN76308PR900CG0-Z
54 Operating Instructions 07/2018
