10.5 Roller bearings, DE












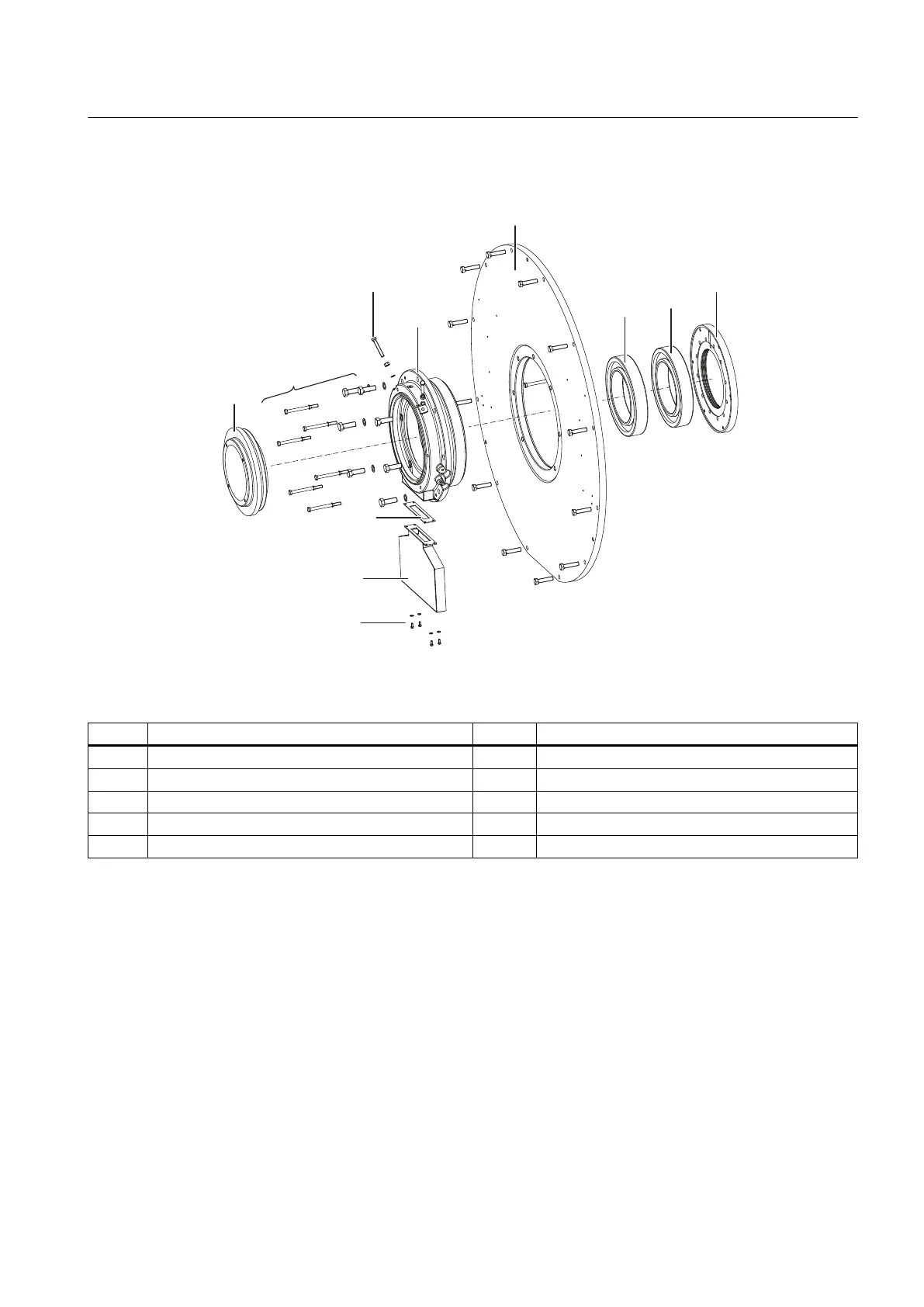

Figure 10-3 Roller bearings, DE
Table 10-3 Spare parts for roller bearings, DE
Part Description Part Description
3.21 Outer bearing cover 3.50 Bearing housing
3.25 Seal 3.61 Bearing cap, inner
3.26 Screws to lock the bearings 3.86 Spent grease chamber
3.40 Deep-groove ball bearing (locating bearing) 3.94 Mounting parts
3.41 Deep-groove ball bearing (floating bearing) 5.00 End shield, DE
Spare parts
10.5 Roller bearings, DE
SIMOTICS HV M 1RN76308PR900CG0-Z
Operating Instructions 07/2018 113
