10.4 Top enclosure















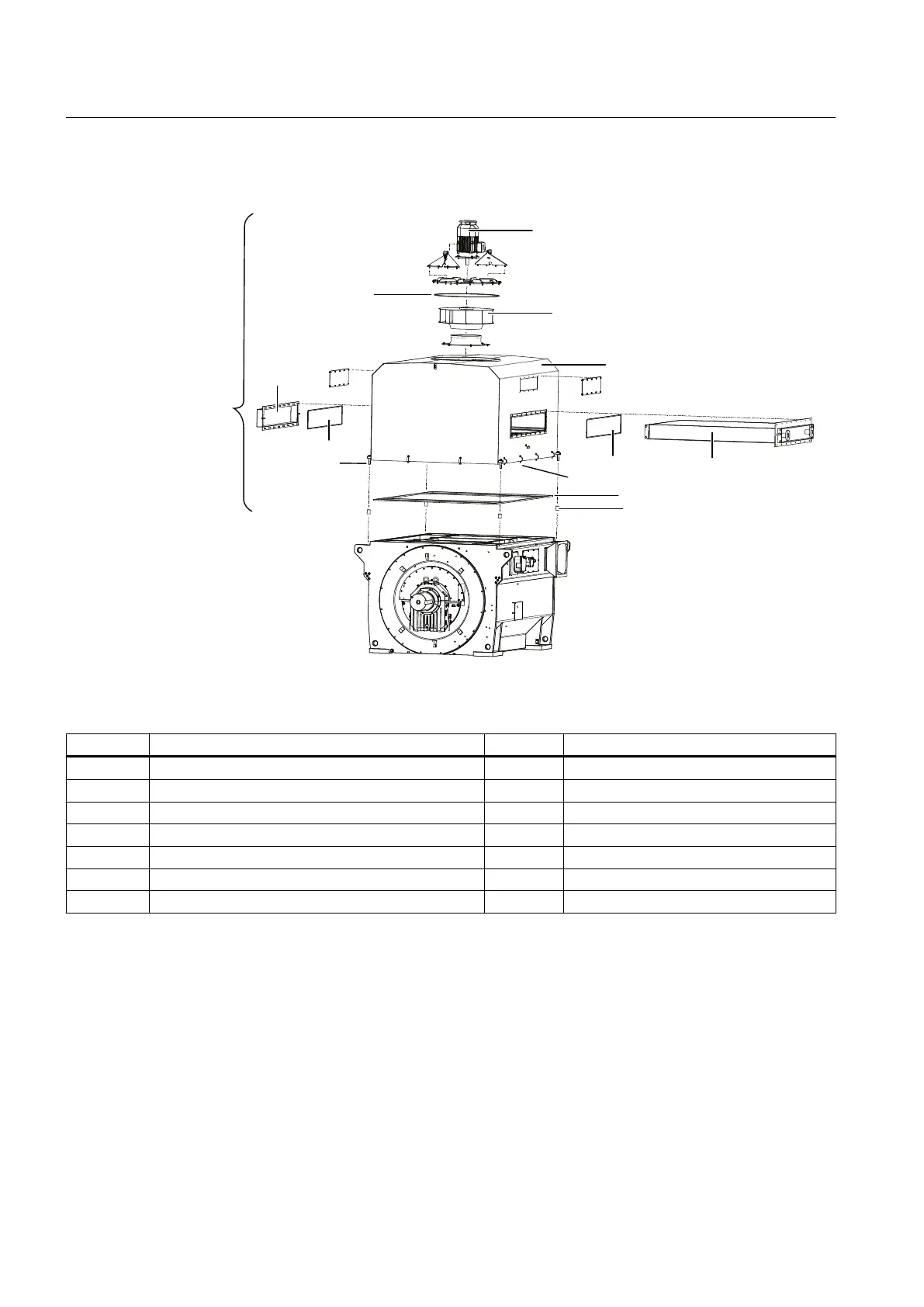

Figure 10-2 Top enclosure
Table 10-2 Spare parts for the top enclosure
Part Description Part Description
10.16 Ground connection: 30.45 Cover
10.37 Spacer tube 31.16 Seal (motor side)
10.46 Mounting elements 32.50 Fan motor
30.02 Air-water cooler assembly with fan unit 32.53 Fan impeller
30.10 Housing 32.61 Adapter flange
30.40 Air-to-water cooling element 32.62 Seal
30.41 Seal
Spare parts
10.4 Top enclosure
SIMOTICS HV M 1RN76308PR900CG0-Z
112 Operating Instructions 07/2018
