Electrical connection
8.3 System integration
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
377

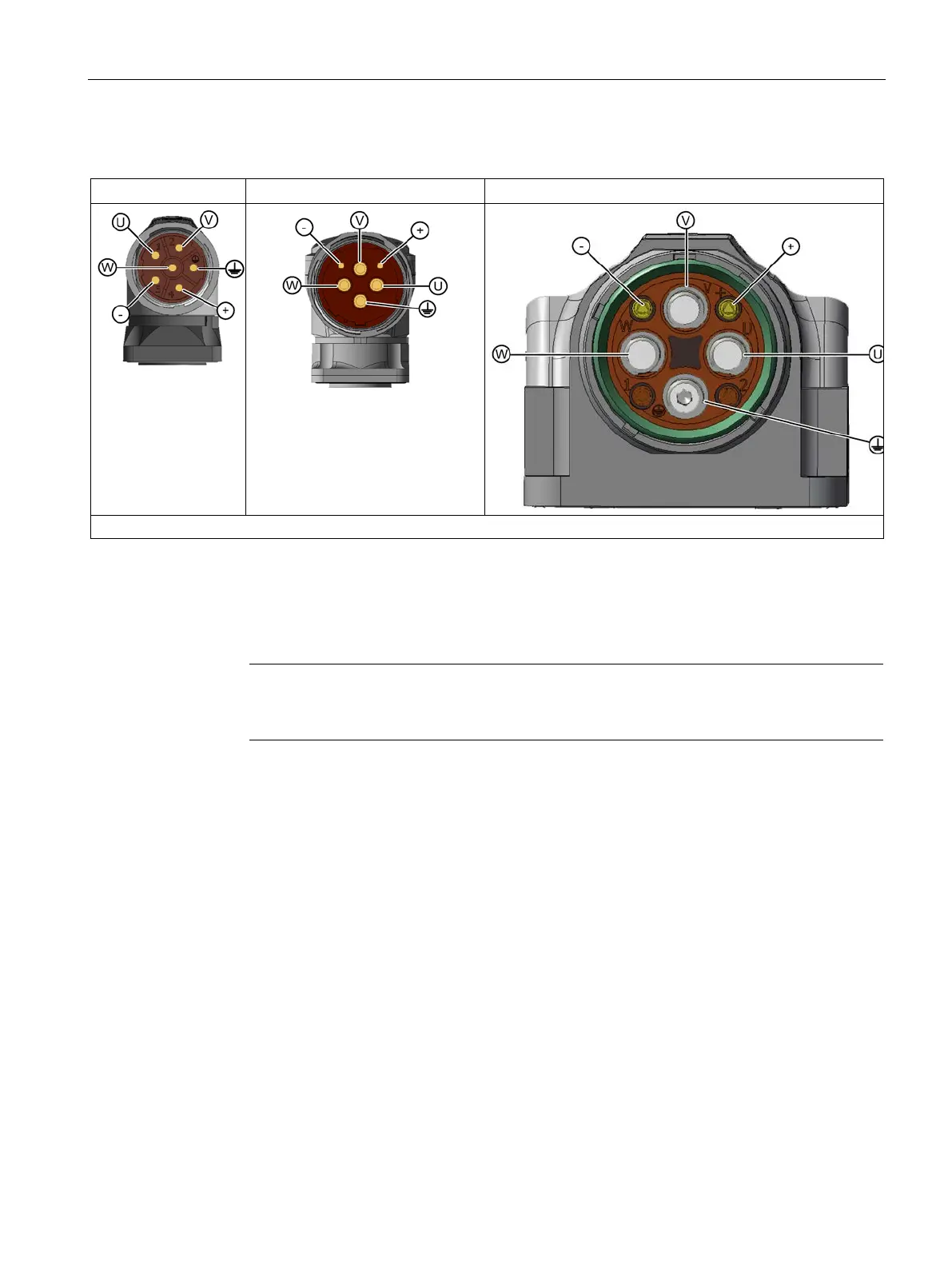

Designs of the motor connectors
Selecting and connecting the cables
● To connect the motor to a converter, use MOTION-CONNECT cables or shielded
connecting cables.
Note
The cable shielding, made up of as many strands as possible, must have a high electrical
conductivity. Braided shields made of copper or aluminum are well suited.
