Align the offset at the coupling between electrical machines and the driven machines so that
the maximum permissible vibration values according to ISO 10816-3 are not exceeded.
5.2.2.1

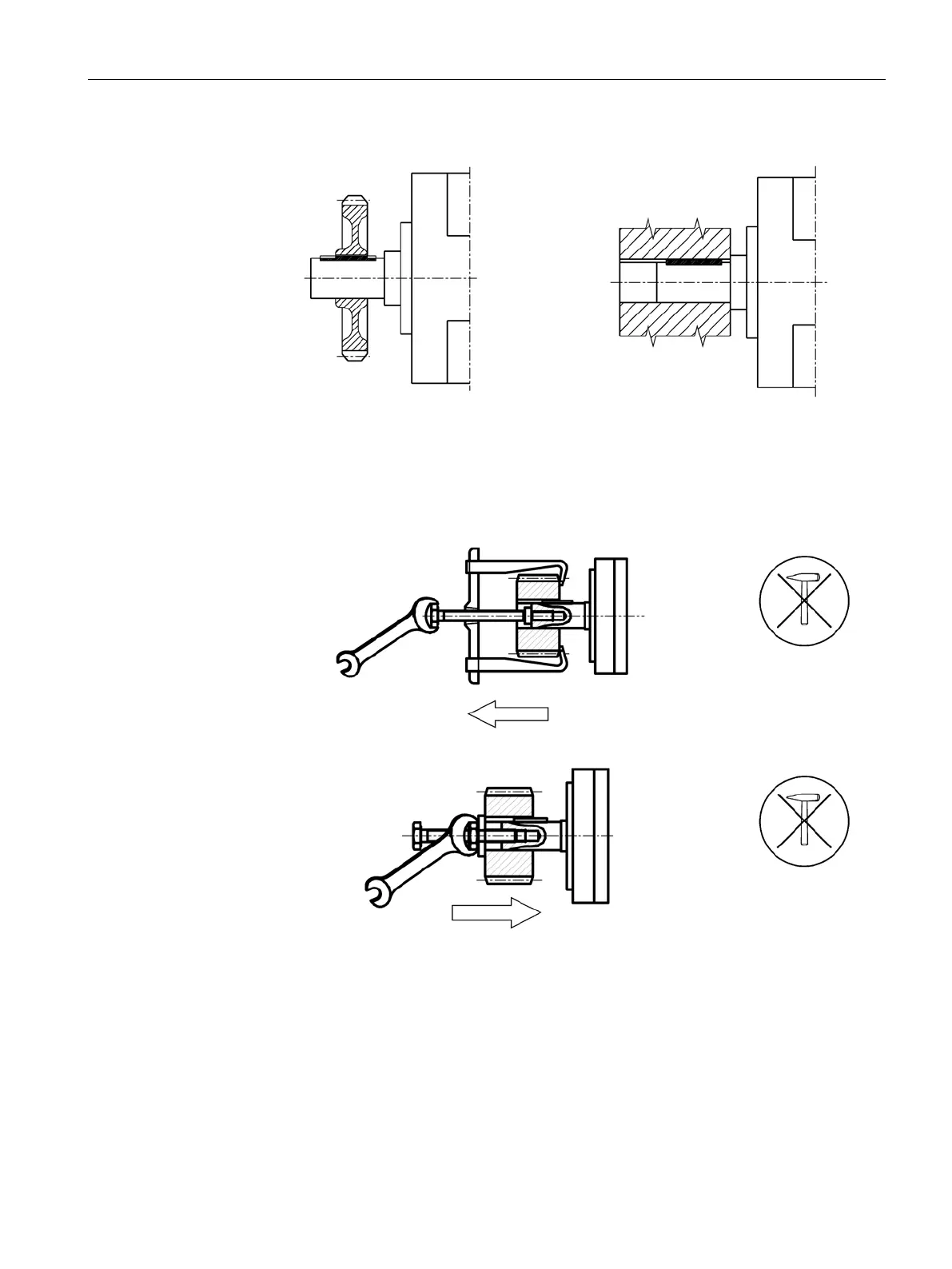

Mounting and withdrawing output transmission elements
Withdrawing output transmission elements
Mounting output transmission elements
● When mounting output transmission elements (coupling, gear wheel, belt pulley etc. ) use
the thread at the shaft end.
If possible, heat up the output transmission elements as required.
● Use a suitable device when withdrawing output elements.
