Siemens SIMOTICS XP 1MB1 series - Mounting Position of Sheet Metal Nuts in Screw-Type Connections; Tightening Torques

Electrical connection
6.3 Tightening torques
1LA5/6/7/9, 1LG4/6, 1MA6/7, 1MB..1/2/3/4/5 - SH 63 ... 355
76 Operating Instructions, 06/2018, A5E44455710A
Cable glands with reductions and (sheet metal) nuts (EN 50262)
①
②
Nut
O ring
6.2.2.1

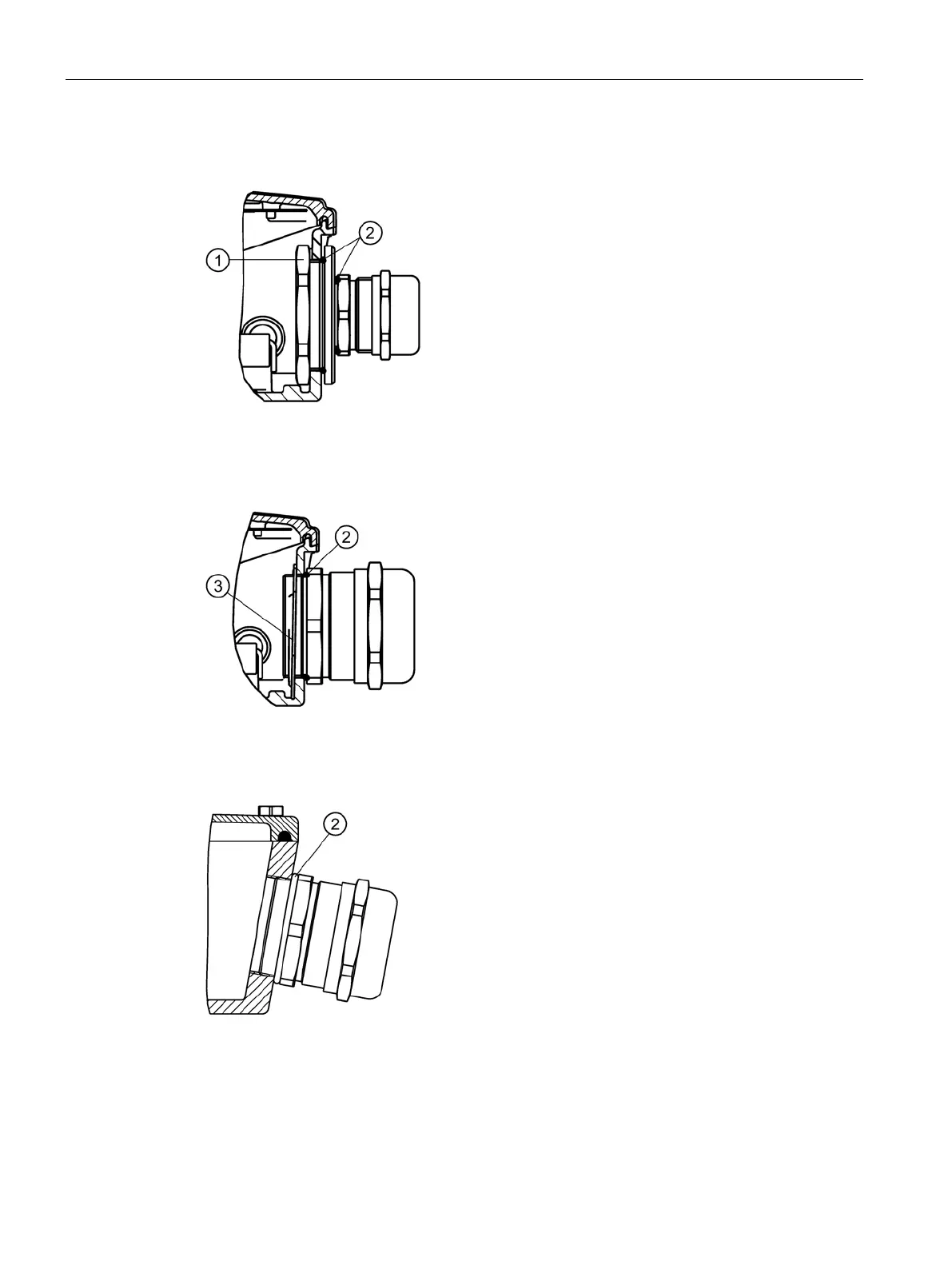

Mounting position of sheet metal nuts in screw-type connections
②
③
O ring
Mounting position of metal
-sheet
nuts
Cable glands with connecting thread in the terminal box (EN 50262)
②
O ring
6.3
Tightening torques
Note the information in Chapter Tightening torques (Page 165).
