Electrical connection
6.6 Conductor connection
1LA5/6/7/9, 1LG4/6, 1MA6/7, 1MB..1/2/3/4/5 - SH 63 ... 355
82 Operating Instructions, 06/2018, A5E44455710A

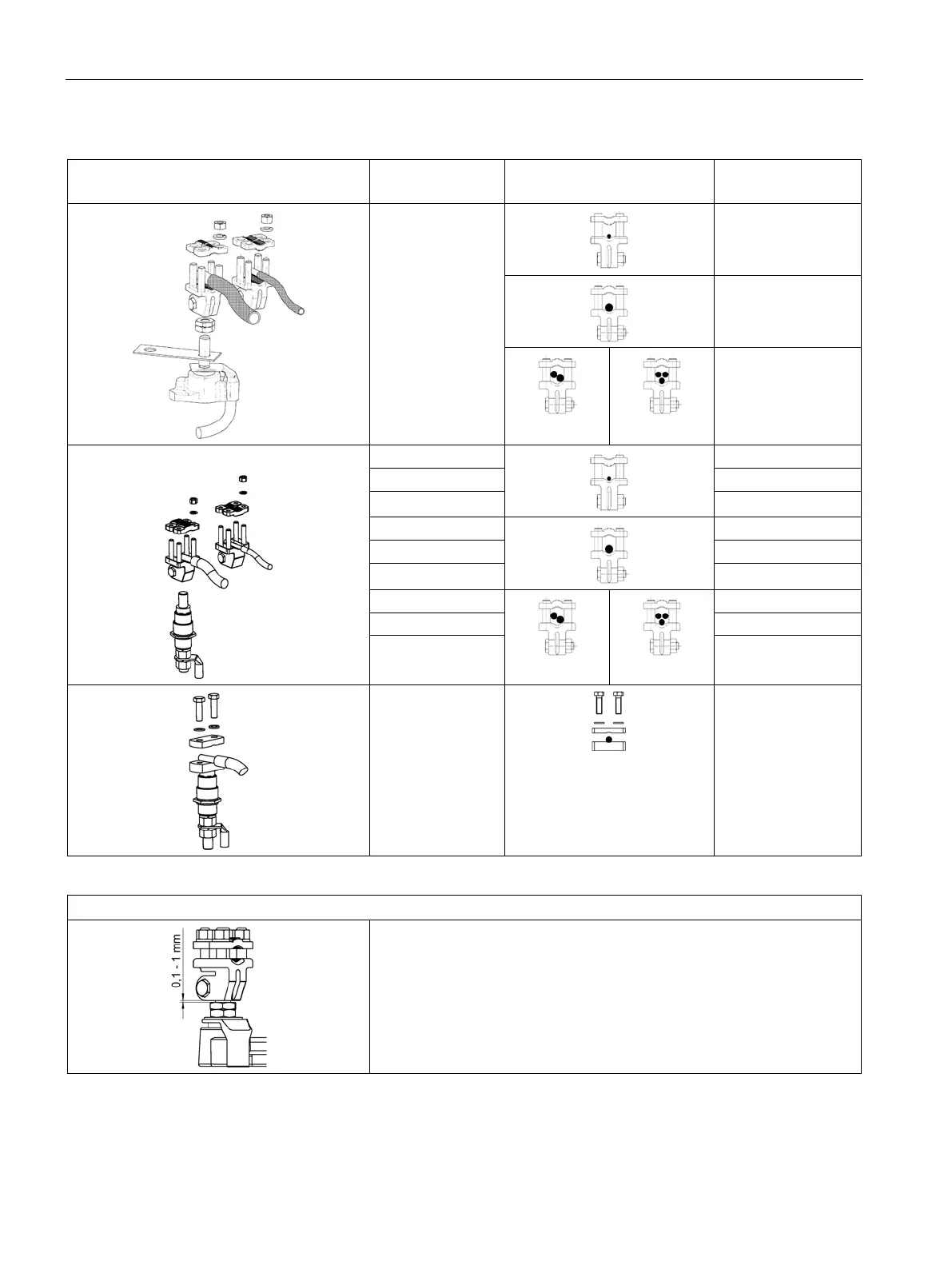

Type of connection
Terminal studs
Cable position with terminal
Cable cross-section
mm²
M 8 2.5 … 25
16 ... 50
10 … 16
M 10
10 ... 95
M 12
25 … 185
M 16 50 … 300
M 10
50 … 120
M 12
95 … 240
M 16 120 … 300
M 10
16 … 35
M 12
16 … 70
M 16 16 … 120
M 20
25 ... 300
Assembly of clamping device
M8
Mount the clamping devices on the terminal board at a distance of
0.1 ... 1 mm to the lock nuts.
